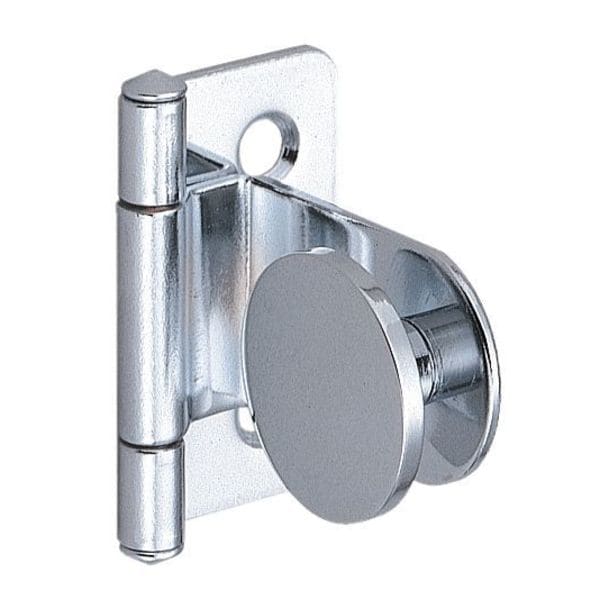

Lift-Off Hinge, Steel, Half Surface Mounting, 1 3/8 in Leaf W x 45/64 in Leaf H, Chrome
| Corners | Round |
|---|---|
| Door Leaf Height | 45/64 in |
| Door Leaf Thickness | 0.063 in |
| Door Leaf Width | 1-1/32 in |
| Finish | Chrome |
| Holes per Leaf | 1 |
| Load Capacity | 4.5 lb |
| Material | Steel |
| Mounting | Half Surface |
| Orientation | Right Hand |
| Pin Dia. | 13/64 in |
| Range of Motion | 270 deg |
| Required Door Thickness | 1/8 in |
| Features | Hinge for Glass/Acrylic Doors; 17-3/4" Door Width; 27-9/16" Door Height |
| Pin Material | Stainless Steel |
| Item | Lift-Off Hinge |
| Pin Type | Nonremovable |
| Frame Leaf Width | 1-3/8 in |
| Frame Leaf Height | 45/64 in |
| Hardware | Yes |
| Ligature Resistant | No |
| Frame Leaf Thickness | 0.063 in |
| Holes | With |
| Overall Width | 31 mm |
| Range of Motion - Maximum | 270 deg |
| ANSI/BHMA Finish | Bright Chromium-Plated |
| Pin Diameter | 5 mm |
| Number of Holes per Leaf | 2 |
| Mounting Style | Full Surface |
| Includes Holes | Holes Included |
| Corner Type | Round |
| Includes Hardware | Hardware Included |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
