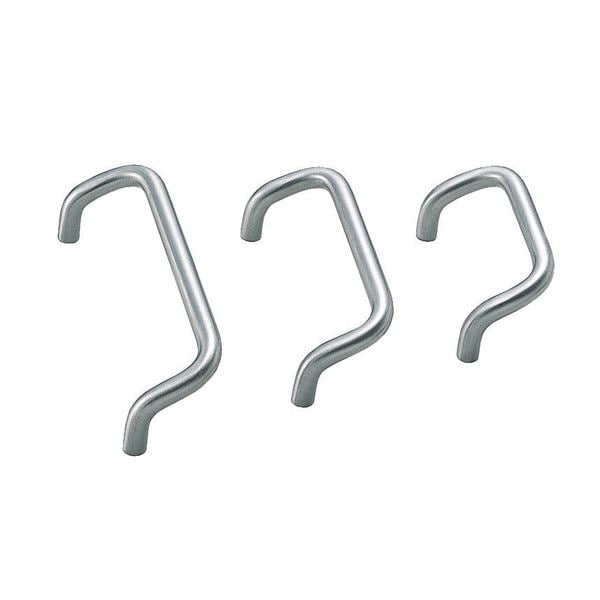

Offset Pull Handle, 304 Stainless Steel, Satin, Threaded Holes
| Finish | Satin |
|---|---|
| Color | Silver |
| Material | Stainless Steel |
| Mounting Type | Threaded Holes |
| Projection | 1-31/32 in |
| Item | Pull Handle |
| Screw Size | M5 |
| Hardware | Included |
| Diameter | 1-31/32 in |
| Load Rated (Y/N) | N |
| Overall Length | 2 in |
| Grip Thickness | Not Applicable |
| Grip Dia. | 1/2 in |
| Mounting Hole Center to Center | 6-5/16 in |
| Overall Width | 6-13/16 in |
| Grip Height | 1-31/32 in |
| Degree Offset | 115 deg |
| Grip Length | 5-13/16 in |
| Thread Depth | 13/32 in |
| Includes | Screws |
| Cutout Width | Not Applicable |
| Product Type | Offset Pull Handle |
| Grip Shape | Round |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Mounting Hole Center to Center - Inner | Not Applicable |
| Standards | NSF Certified, RoHS Compliant |
| Folding Type | Fixed |
| Number of Mounting Holes | 2 |
| Cutout Depth | Not Applicable |
| Grip Diameter | 15/32 in |
| Projection Type | Non-Recessed |
| Handle Shape | Bridge |
| Mounting Hole Center to Center - Vertical | Not Applicable |
| Projection - Folded | Not Applicable |
| Load Capacity - Perpendicular | Not Applicable |
| Grip Offset | 1-31/32 in |
| Includes Hardware | Hardware Included |
| Count | 10 |
| Load Capacity - Parallel | Not Applicable |
| Load Rating | Load Rated |
| Cutout Length | Not Applicable |
| Grip Width | 6-25/32 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
