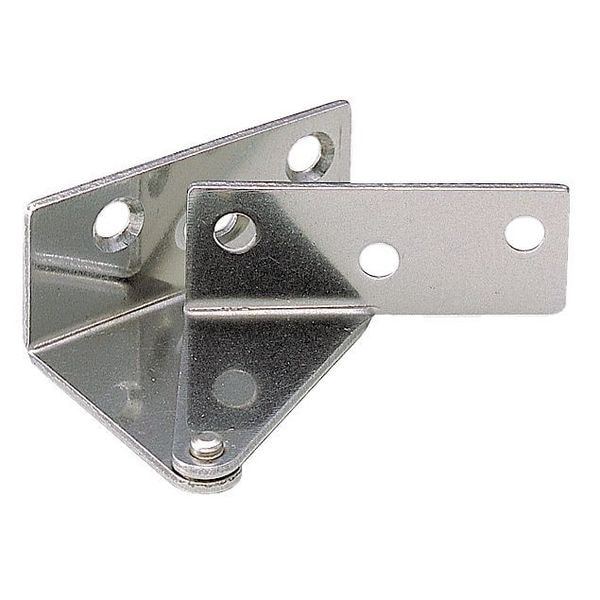

Pivot Hinge, 430 Stainless Steel, Screw on Mounting, 1 5/8 in Leaf W x 11/16 in Leaf H, Plain
| Item | Pivot Hinge |
|---|---|
| Material | Stainless Steel |
| Finish | Plain |
| Load Capacity | 3.9 lb |
| Ligature Resistant | No |
| Range of Motion | 270 deg |
| Orientation | Left Hand |
| Mounting | Screw on |
| Bearing Type | Plain |
| Holes per Leaf | 3 |
| Frame Leaf Width | 1-5/8 in |
| Frame Leaf Height | 11/16 in |
| Frame Leaf Thickness | 0.059 in |
| Door Leaf Width | 1-5/8 in |
| Door Leaf Height | 11/16 in |
| Door Leaf Thickness | 0.059 in |
| Features | 11-13/16" Door Width; 27-9/16" Door Height |
| Required Door Thickness | 15/16" |
| Corners | Square |
| Pin Material | Stainless Steel |
| Pin Dia. | 1/8 in |
| Hardware | Not included |
| Holes | With |
| Pin Type | Nonremovable |
| Overall Width | 40.5 mm |
| Overall Knuckle Height | 9/16 in |
| ANSI/BHMA Finish | Bright Stainless Steel |
| Includes Holes | Holes Included |
| Resistance Properties | Corrosion-Resistant |
| Range of Motion - Maximum | 270 deg |
| Includes Hardware | Hardware Not Included |
| Number of Holes per Leaf | 7 |
| Pin Diameter | 1/8 in |
| Corner Type | Square |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
