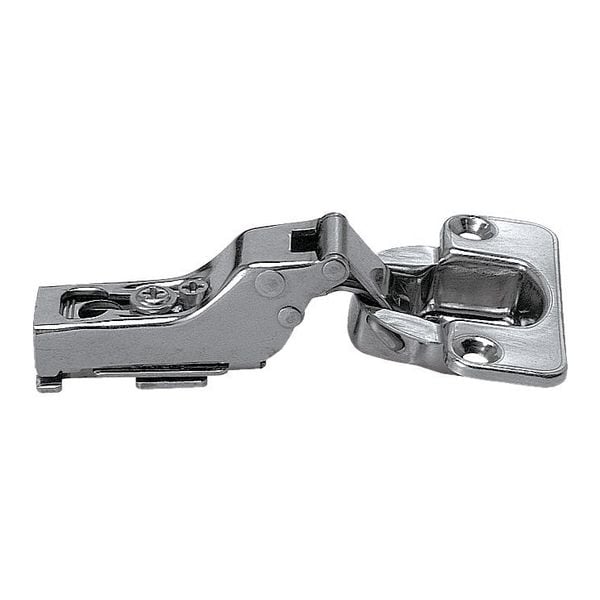

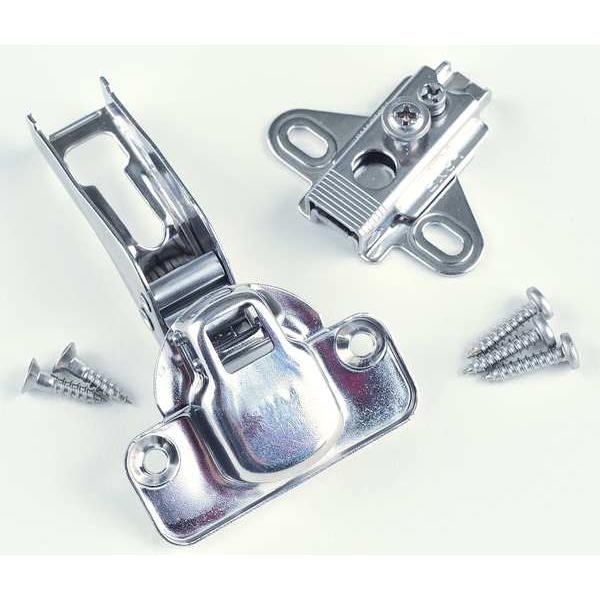

Spring Hinge, Stainless Steel, Half Surface Mounting, 1 1/2 in Leaf W x 2 1/8 in Leaf H, polished
| Corners | Round |
|---|---|
| Door Leaf Height | 2-1/8 in |
| Door Leaf Thickness | 5/8 in |
| Door Leaf Width | 1-1/2 in |
| Finish | polished |
| Holes per Leaf | 2 |
| Load Capacity | 11 lb |
| Material | Stainless Steel |
| Mounting | Half Surface |
| Orientation | Non Handed |
| Range of Motion | 100 deg |
| Required Door Thickness | 19/32 in |
| Features | Self Closing Type; 9mm Overlay; Requires Mounting Plate 304B-P4A/32-3W for Installation |
| Frame Leaf Width | 1-1/2 in |
| Item | Spring Hinge |
| Frame Leaf Thickness | 5/8 in |
| Pin Material | Stainless Steel |
| Hardware | Yes |
| Ligature Resistant | No |
| Pin Type | Nonremovable |
| Holes | With |
| Frame Leaf Height | 2-1/8 in |
| Bearing Type | Plain |
| Overall Width | 1-1/2 in |
| Standards | NSF, RoHS 3 Compliant |
| Hand Orientation | Non-Handed |
| Door Thickness - Maximum | 25/32 in |
| Includes Hardware | Hardware Included |
| Mounting Style | Half Mortise |
| Number of Holes per Leaf | 2 |
| ANSI/BHMA Finish | Bright Stainless Steel |
| Removable Pin | No |
| Resistance Properties | Corrosion-Resistant |
| Corner Type | Round |
| Range of Motion - Maximum | 100 deg |
| Door Thickness - Minimum | 19/32 in |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
