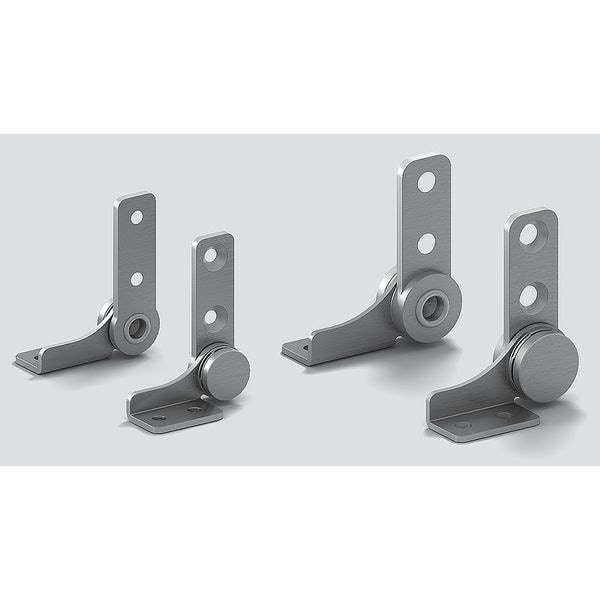

Torque Hinge, 304 Stainless Steel, 18 in Leaf W x 1 11/16 in Leaf H
| Corners | Round |
|---|---|
| Item | Torque Hinge |
| Material | Stainless Steel |
| Load Capacity | 45.9 lb |
| Frame Leaf Height | 1-11/16 in |
| Frame Leaf Thickness | 0.094 in |
| Finish | Stainless steel |
| Frame Leaf Width | 18 in |
| Holes per Leaf | 2 |
| Door Leaf Height | 8 in |
| Door Leaf Thickness | 0.094 in |
| Door Leaf Width | 31 in |
| Orientation | Handed |
| Range of Motion - Maximum | 180 deg |
| Range of Motion | 360 deg |
| Features | Ideal for Indoor Applications; Constant Torque Throughout Working Range |
| Holes | With |
| Hardware | Not included |
| Ligature Resistant | No |
| Pin Type | Nonremovable |
| Standards | RoHS 3 Compliant |
| Overall Width | 2-1/16 in |
| Leaf Thickness | 0.087 in |
| Hand Orientation | Right-Handed |
| Number of Holes per Leaf | 2 |
| Removable Pin | No |
| ANSI/BHMA Finish | Bright Stainless Steel |
| Corner Type | Round |
| Includes Hardware | Hardware Not Included |
| Resistance Properties | Corrosion-Resistant |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
