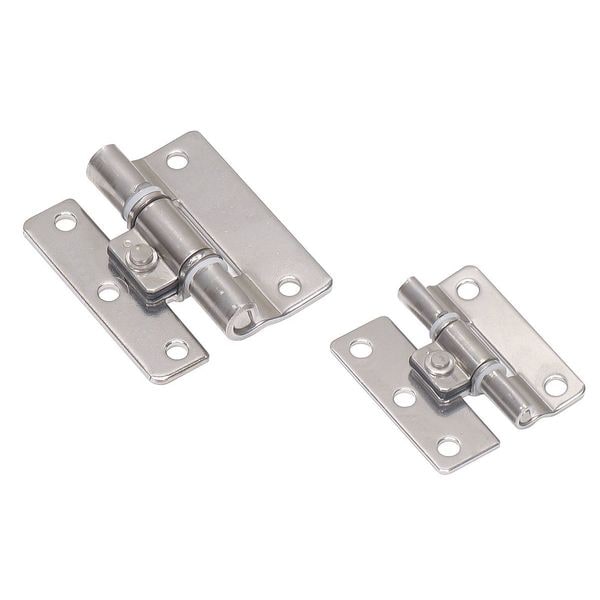

Torque Hinge, 304 Stainless Steel, 53/64 in Leaf W x 1 31/32 in Leaf H
| Item | Torque Hinge |
|---|---|
| Corners | Round |
| Material | Stainless Steel |
| Load Capacity | 7.8 lb |
| Frame Leaf Height | 1-31/32 in |
| Finish | Polished |
| Frame Leaf Thickness | 0.504 in |
| Frame Leaf Width | 53/64 in |
| Holes per Leaf | 2, 3 |
| Door Leaf Height | 1-31/32 in |
| Door Leaf Thickness | 0.504 in |
| Door Leaf Width | 53/64 in |
| Mounting | Screw-On |
| Orientation | Non Handed |
| Range of Motion - Maximum | 190 deg |
| Pin Dia. | 1/2 in |
| Range of Motion | 180 deg |
| Features | Hinge with Friction Torque Holds Lid/Door in Desired Position |
| Pin Type | Nonremovable |
| Ligature Resistant | No |
| Holes | With |
| Hardware | Not included |
| Leaf Thickness | 0.078 in |
| Overall Width | 1-11/16 in |
| Standards | RoHS 3 Compliant |
| Hand Orientation | Non-Handed |
| Includes Hardware | Hardware Not Included |
| Removable Pin | No |
| Corner Type | Round |
| Pin Diameter | 1/2 in |
| Resistance Properties | Corrosion-Resistant |
| ANSI/BHMA Finish | Bright Stainless Steel |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
