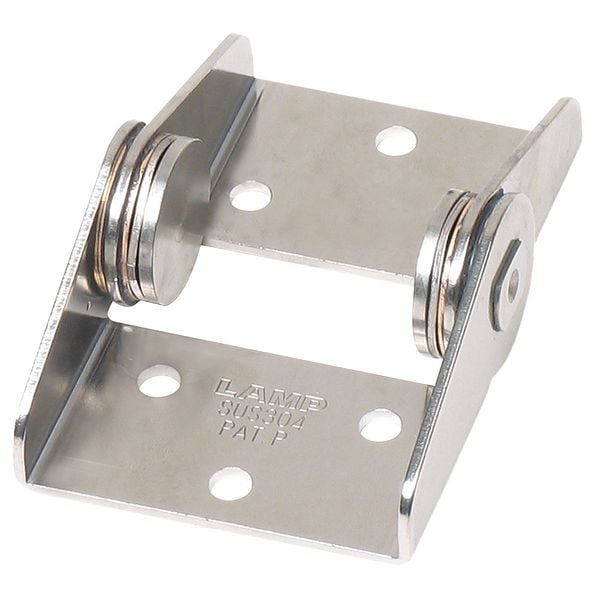

Torque Hinge, 304 Stainless Steel, 63/64 in Leaf W x 2 1/8 in Leaf H
| Corners | Square |
|---|---|
| Item | Torque Hinge |
| Material | Stainless Steel |
| Load Capacity | 43.4 lb |
| Frame Leaf Height | 2-1/8 in |
| Frame Leaf Thickness | 0.984 in |
| Finish | Polished |
| Frame Leaf Width | 63/64 in |
| Holes per Leaf | 3 |
| Door Leaf Height | 1-47/64 in |
| Door Leaf Thickness | 0.984 in |
| Door Leaf Width | 63/64 in |
| Orientation | Non Handed |
| Range of Motion - Maximum | 180 deg |
| Range of Motion | 180 deg |
| Features | Hinge with Friction Torque for Holding Monitors, Displays etc.., in Position |
| Ligature Resistant | No |
| Holes | With |
| Pin Type | Nonremovable |
| Hardware | Not included |
| Leaf Thickness | 0.087 in |
| Overall Width | 3-5/32 in |
| Standards | RoHS 3 Compliant |
| Hand Orientation | Non-Handed |
| Removable Pin | No |
| Corner Type | Square |
| Resistance Properties | Corrosion-Resistant |
| ANSI/BHMA Finish | Bright Stainless Steel |
| Number of Holes per Leaf | 3 |
| Includes Hardware | Hardware Not Included |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
