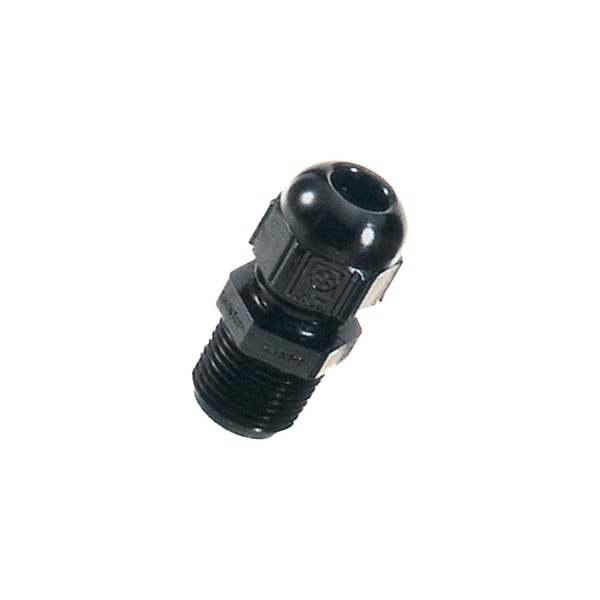

1" STRAIGHT CORD GRIP, .551" MIN O.D. .827" MAX O.D., NON-METALLIC
| Color | Black |
|---|---|
| Clamping Range - MIN (mm) | 14 |
| Operating Temperature Range #2 | -20°C to +80°C |
| Materials of Construction #2 | CR |
| IP Protection Rating #1 | 70 PSI |
| Materials of Construction #1 | Polyamide |
| Operating Condition #2 for Temperature Range | dynamic |
| Thread Type | NPT |
| Component Material #3 | Bushing |
| Thread Type/Size | NPT 1" |
| Clamping Range - MAX (in) | 0.827 |
| Clamping Range - MAX (mm) | 21 |
| Materials of Construction #3 | CR |
| Operating Temperature Range #1 | -40°C to +100°C |
| Component Material #1 | Body |
| IP Protection Rating #2 | NEMA 1, 12 |
| Component Material #2 | Bushing |
| Operating Condition #1 for Temperature Range | static |
| Clamping Range - MIN (in) | 0.551 |
| Package Quantity | 1 |
