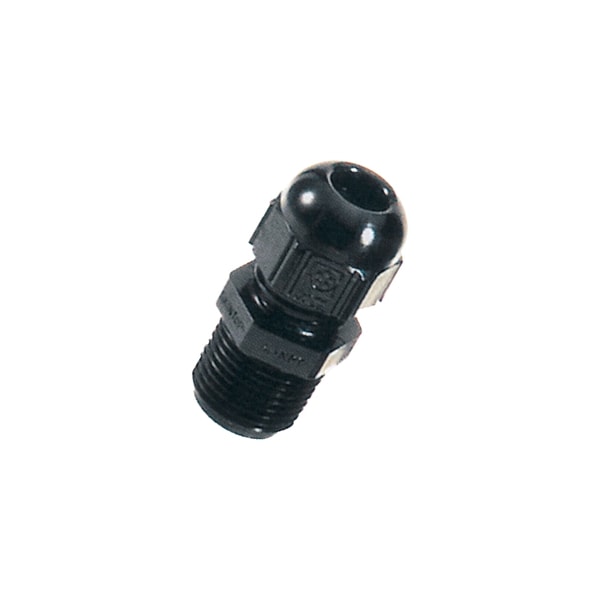

1/2" STRAIGHT CORD GRIP, .157" MIN O.D. .354" MAX O.D., NON-METALLIC
| Color | grey |
|---|---|
| Clamping Range - MIN (mm) | 4 |
| Thread Type/Size | NPT 1/2" |
| IP Protection Rating #2 | NEMA 1, 12 |
| Thread Type | NPT |
| Clamping Range - MAX (mm) | 9 |
| Materials of Construction #2 | CR |
| Component Material #3 | Bushing |
| Clamping Range - MAX (in) | 0.354 |
| Operating Condition #1 for Temperature Range | static |
| Clamping Range - MIN (in) | 0.157 |
| Component Material #2 | Bushing |
| Component Material #1 | Body |
| IP Protection Rating #1 | 70 PSI |
| Operating Temperature Range #2 | -20°C to +80°C |
| Operating Condition #2 for Temperature Range | dynamic |
| Materials of Construction #3 | CR |
| Operating Temperature Range #1 | -40°C to +100°C |
| Materials of Construction #1 | Polyamide |
| Package Quantity | 1 |
