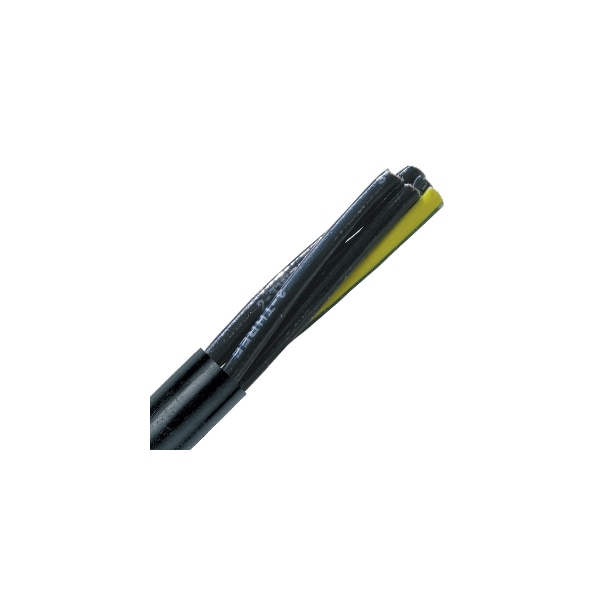

18-12C TYPE TC-ER STR BC, PVC/NYL PVC JKT FT4, 1000FT
| Voltage | 600V |
|---|---|
| Jacket Material | Thermoplastic polymer |
| Jacket Color | Black |
| Wire Size | 18 AWG |
| Number of Conductors | 12 |
| Material | Bare Copper |
| Description/Special Features | Class 5 Fine Wire; Ground Connector |
| Temp. Range | -25 to 90 deg C |
| Type | Finely Stranded |
| Standards | UL/CSA TC |
| Insulation Material | Chloride/Nylon, Nyl-Polyvinyl, Pvc |
| Screen/Shield | Unshielded |
| Stranding | 19 Strands in Each Conductor |
| Product Type | Trayflexii |
| Jacketing Material | Tpe-Thermoplastic Elastomer |
| Conductor Count | 12 Conductor |
| Temperature Rating | 90 Degrees Centigrade |
| Package Quantity | 1 |
