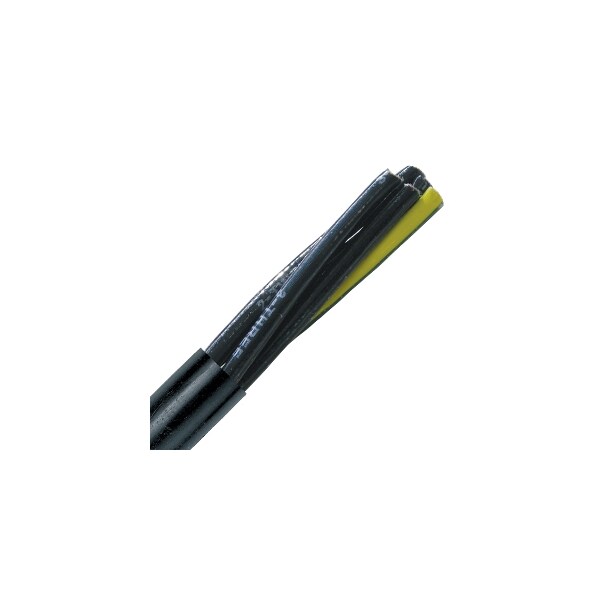

Este cable de 18 conductores con apantallamiento tipo TC-ER está diseñado con conductores de cobre estañado, ideal para instalaciones en interiores. La cubierta de PVC/Nylon PVC FT4 ofrece protección contra llamas y resistencia a la humedad, asegurando una conexión confiable y segura en todo momento.
| Number of Conductors | 18 |
|---|---|
| Wire Size | 18 AWG |
| Voltage | 600V |
| Jacket Color | Black |
| Jacket Material | Thermoplastic polymer |
| Standards | UL/CSA TC |
| Material | Bare Copper |
| Type | Finely Stranded |
| Temp. Range | -25 to 90 deg C |
| Description/Special Features | Class 5 Fine Wire; Ground Connector |
| Stranding | 19 Strands in Each Conductor |
| Conductor Count | 18 Conductor |
| Jacketing Material | Tpe-Thermoplastic Elastomer |
| Insulation Material | Pvc, Chloride/Nylon, Nyl-Polyvinyl |
| Temperature Rating | 90 Degrees Centigrade |
| Screen/Shield | Unshielded |
| Product Type | Trayflexii |
| Package Quantity | 1 |
