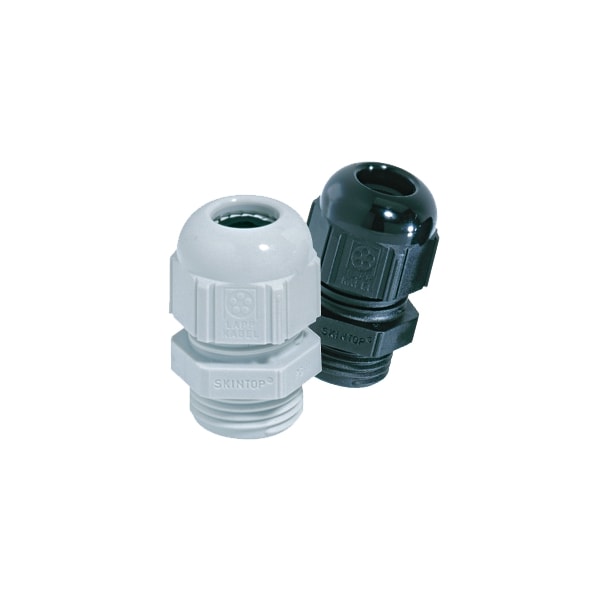

CONECTOR DE ROSCA MÉTRICA GRIS CON TUERCA DE BLOQUEO, HERMÉTICO LÍQUIDO NO METÁLICO SKINTOP.
| Materials of Construction #3 | CR |
|---|---|
| Clamping Range - MIN (in) | 0.236 |
| Clamping Range - MAX (in) | 0.512 |
| Color | silver grey |
| Clamping Range - MIN (mm) | 6 |
| IP Protection Rating #2 | IP69 |
| Operating Temperature Range #1 | -40 to 80 deg C |
| IP Protection Rating #1 | 70 PSI |
| Clamping Range - MAX (mm) | 13 |
| Component Material #3 | Bushing |
| Operating Condition #1 for Temperature Range | static |
| Materials of Construction #1 | Polyamide |
| Operating Condition #2 for Temperature Range | dynamic |
| Operating Temperature Range #2 | -20°C to +100°C |
| Component Material #1 | Body |
| Thread Type | Metric |
| Thread Type/Size | M20 |
| Component Material #2 | Bushing |
| Materials of Construction #2 | CR |
| Armored/Unarmored | For Use With Unarmored Cable |
| Package Quantity | 1 |
