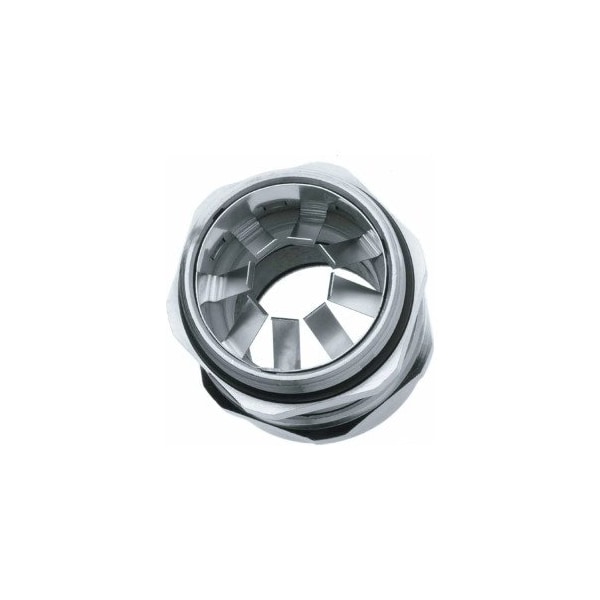

La SKINTOP MS-SC LIQUID TIGHTM-32X1.5 es una solución de alta calidad para un rango de apriete de .433 a .827, ideal para aplicaciones que requieren protección contra líquidos y polvo.
| Clamping Range - MAX (in) | 0.827 |
|---|---|
| Clamping Range - MIN (in) | 0.433 |
| Thread Type | Metric |
| Component Material #4 | Bushing |
| Materials of Construction #4 | CR |
| Thread Type/Size | M32 |
| Component Material #2 | Insert |
| Clamping Range - MIN (mm) | 11 |
| Materials of Construction #1 | Nickel-plated brass |
| Clamping Range - MAX (mm) | 21 |
| Materials of Construction #3 | Polyamide |
| Operating Condition #1 for Temperature Range | Temp Range |
| Color | Metallic |
| Materials of Construction #2 | Polyamide |
| IP Protection Rating #1 | IP68, 5 bar (exceeds NEMA 6/6P pressure rating) when used with O-ring |
| Component Material #3 | Insert |
| Operating Temperature Range #1 | -30°C to +100°C |
| Component Material #1 | Body |
| Armored/Unarmored | For Use With Unarmored Cable |
| Package Quantity | 1 |
