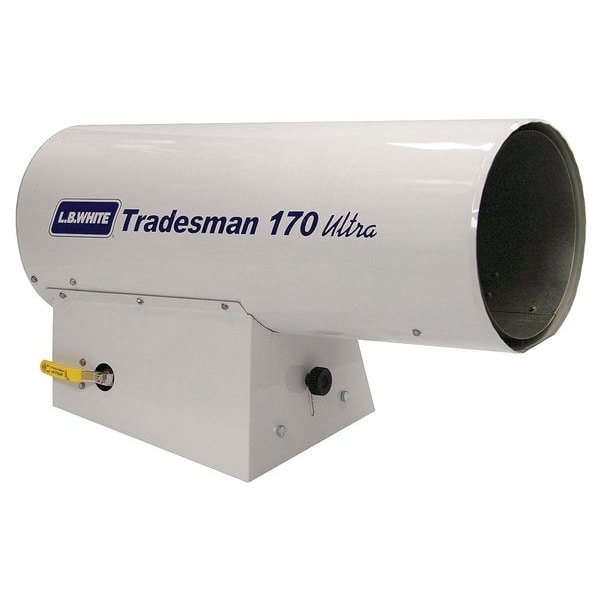

Portable Gas Torpedo Heater, Liquid Propane, Direct Spark, 10 in Wx 24 in L
| Gas Type | Liquid Propane |
|---|---|
| BtuH Output | 125,000 to 170,000 |
| Air Flow | 550 cfm |
| Includes | Gas Hose, Regulator |
| Width | 10 in |
| Length | 24 in |
| Amps AC | 2.1 A |
| Ignition Type | Direct Spark |
| Height | 16 in |
| Hz | 60 |
| Features | Electronic Spark Ignition, Heavy Gauge Combustion Chamber, Self Diagnostic Service Saver, Thermostatic Temperature Control, Tri-Shield Finish, Variable Output |
| Heater Voltage | 120 V AC |
| Fuel Rate | 7.2 lb/hr |
| Min. Cylinder Size | 100 lb |
| Built-In Thermostat | Yes |
| Heating Area | 4,000 sq ft |
| Manufacturers Warranty Length | 2 yr heater, 1 yr parts |
| Standards | ANSI Z83.7, CSA 2.14 |
| Safety Features | Gas Control Valve, High Limit Switch, Air Proving Switch, P.O.L. Valve |
| Item | Portable Gas Torpedo Heater |
| NEMA Plug Configuration | 5-15P |
| Overall Height | 16 in |
| Overall Width | 9-1/2 in |
| Minimum Cylinder Size | 100 lb |
| Flame-Out Sensor Included | Yes |
| Fuel Type, Ignition Type, Ignition Power Source | Propane, Direct Spark, Electric |
| Power Failure Indicator Included | No |
| Overall Dimensions - H x W x D | 16 in x 9-1/2 in x 24 in |
| Fuel Gauge Included | No |
| Fuel Consumption | 7.2 lb/hr |
| Thermal Overheat Protection | Automatic Reset |
| Amperage | 1 A |
| Housing Material | Steel |
| Built-In Air Pressure Gauge Included | Yes |
| Automatic Safety Shut-Off Included | Yes |
| LED Diagnostics Included | Yes |
| Ignition Power Source | Electric |
| Digital Temperature Readout Included | No |
| On/Off Switch Included | Yes |
| Frequency | 60 Hz |
| Firing Type | Direct-Fired |
| Housing Color | White |
| Housing Finish | Tri-shield(TM) |
| For Use Outdoors | Indoor, Outdoor |
| Heating Capacity Output | 170,000 BtuH |
| Overall Depth | 24 in |
| Fuel Type | Propane |
| Heating Method | Fan Forced |
| Thermostat Included | Unit-Mounted |
| For Use Indoors/Outdoors | Indoor, Outdoor |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
