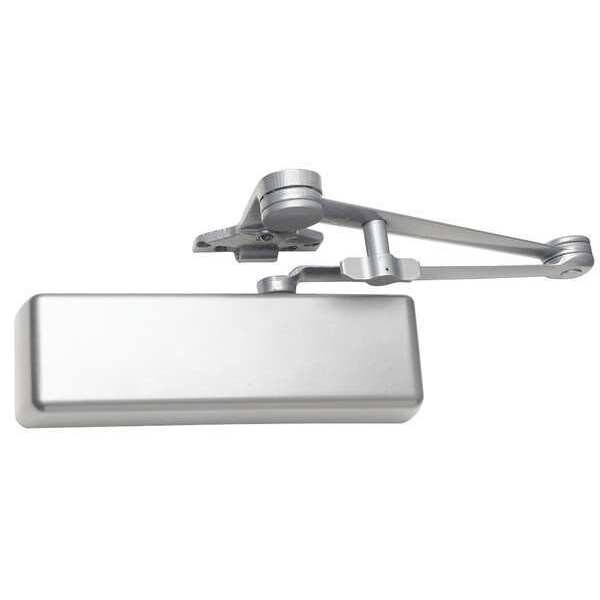

Manual, Hydraulic, 4030 Series Surface Mounted Closers, Surface Mounted Universal Closer, Interior
| Item | Surface Mounted Universal Closer |
|---|---|
| Closer Mounting Style | Surface |
| Closer Performance | Heavy Duty |
| Closer Series | 4,030 Series (Surface Mounted Closers) |
| Closer Type | Hold Open Cush, Stop Arm |
| Color | Aluminum |
| Finish | Aluminum |
| Hand Orientation | Non-Handed |
| Housing Depth | 1-3/4 in |
| Housing Height | 2-3/4 in |
| Housing Length | 10-3/8 in |
| Interior/Exterior | Interior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Aluminum |
| Spring Size | Adjustable 1 to 4 |
| Mounting Hardware | Included |
| Projection from Wall | 1-3/4 in |
| Ligature Resistant | No |
| Interior Door Width | 48 in |
| Includes | Metal Cover |
| Arm Type | Parallel |
| Standards | Grade 1-ANSI A156.4; UL 10C; ADA; 100 Hour Salt Spray; Meets BAA-Buy American Act |
| Arm Material | Forged Steel |
| Exterior Door Width | 36 in |
| ADA Compliant | Yes |
| Max. Door Opening | 180 Degrees |
| Category Type | Parallel Arm |
| Series | 4031 |
| Door Handing | Non-Handed |
| For Use With | Interior and Exterior Doors |
| Mounting Style | Parallel Arm |
| Product Type | Door Closer |
| Height Between Mounting Holes | 1 in |
| Includes Hardware | Hardware Included |
| Door Opening - Maximum | 180 deg |
| ANSI/BHMA Finish | Aluminum Painted |
| Spring Type | Adjustable |
| Spring Size - Maximum | 4 |
| Performance Grade | 1 |
| Projection | 1-3/4 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Stop Type | Standard |
| Interior/Exterior Use | Interior, Exterior |
| Spring Size - Minimum | 1 |
| UL Fire Rating | UL10C |
| Length Between Mounting Holes | 1-23/32 in |
| Operation Style | Manual |
| Interior Door Width - Maximum | 47.992 in |
| Exterior Door Width - Maximum | 36 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
