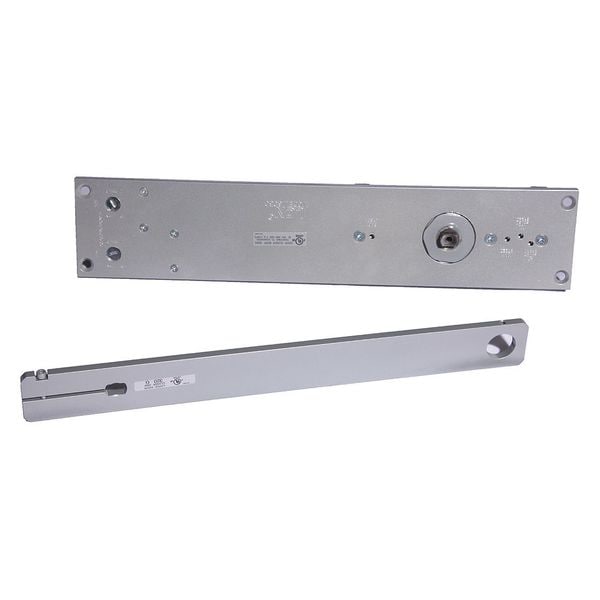

Manual, Hydraulic, 6030 Series Concealed Closers, Double Acting Closer, Heavy Duty Aluminum
| Item | Double Acting Closer |
|---|---|
| Closer Mounting Style | Concealed Overhead |
| Closer Performance | Heavy Duty |
| Closer Series | 6,030 Series (Concealed Closers) |
| Closer Type | Non Hold Open |
| Color | Aluminum |
| Finish | Aluminum |
| Hand Orientation | Non-Handed |
| Housing Depth | 3-23/32 in |
| Housing Height | 1-5/8 in |
| Housing Length | 18-1/4 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Aluminum |
| Max. Door Opening | 95 Degrees |
| Spring Size | 4 |
| Exterior Door Width | Up to 36 in |
| Standards | Grade 1-ANSI A156.4; UL 10 C; ADA; 100 Hour Salt Spray; Meets BAA-Buy American Act |
| ADA Compliant | Yes |
| Ligature Resistant | No |
| Mounting Hardware | Included |
| Arm Material | Cast Aluminum |
| Interior Door Width | Up to 48 in |
| Arm Type | Track |
| Includes | Full Size Cover, Mounting Screws |
| Category Type | Regular Arm |
| Features | 1 1/8 in dia Piston |
| Door Handing | Non-Handed |
| Series | 6030 |
| For Use With | Aluminum Door |
| Mounting Style | Regular |
| Door Opening - Minimum | 85 deg |
| Interior Door Width - Maximum | 48 in |
| Product Type | Door Closer |
| Includes Hardware | Hardware Included |
| Spring Size - Maximum | 5 |
| Spring Size - Minimum | 1 |
| Door Opening - Maximum | 95 deg |
| Spring Type | Adjustable |
| Performance Grade | 1 |
| UL Fire Rating | UL10C |
| Interior/Exterior Use | Interior, Exterior |
| Exterior Door Width - Maximum | 36 in |
| Stop Type | Spring |
| ANSI/BHMA Finish | Aluminum Painted |
| Ligature-Resistant | Not Ligature-Resistant |
| Operation Style | Manual |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
