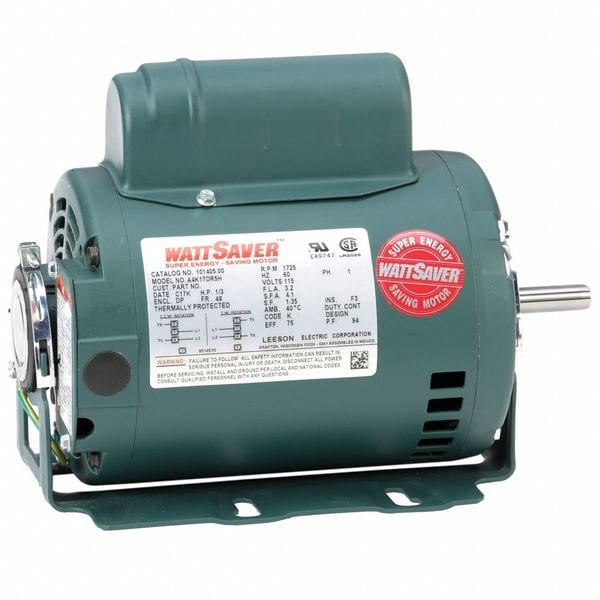

HVAC Motor, 0.33 hp, 115VAC, Shaft 1 1/2" L
| Item | Fan and Blower Motors |
|---|---|
| Motor Design | Capacitor-Start |
| HP | 1/3 |
| RPM Range | 1,701-1,800 |
| Nameplate RPM | 1,725 |
| Voltage | 115V AC |
| Frame | 48 |
| Motor Mounting Type | Resilient Base |
| Phase | Single |
| Motor Enclosure Design | Open Dripproof |
| Voltage Compatibility | 115V AC |
| No. of Speeds | 1 |
| Capacitor Required | Yes |
| Ins. Class | F |
| Duty Cycle | Continuous |
| Motor Mounting Position | Horizontal |
| Includes | Capacitors |
| Motor Thermal Protection | Auto |
| Overall Length | 10-3/8 in |
| Length Less Shaft | 8-7/8 in |
| Conduit Box Position | F1 |
| Full Load Amps | 3.2 |
| Max. Ambient Temp. | 40 deg C |
| Body Dia. | 5-5/8 in |
| Nominal Efficiency | 75% |
| Shaft Dia. | 1/2 in |
| Weight | 22 lb |
| Shaft Length | 1-1/2 in |
| Motor Shaft Rotation | CCW |
| Motor Shaft Design | NEMA 48 |
| Motor Application | HVAC, R |
| Motor Bearings | Ball |
| Hz | 60 |
| Motor Sub Application | Fan, Blower |
| Motor Service Factor | 1.35 |
| Motor Frame Material | Steel |
| Standards | CSA, UL |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
