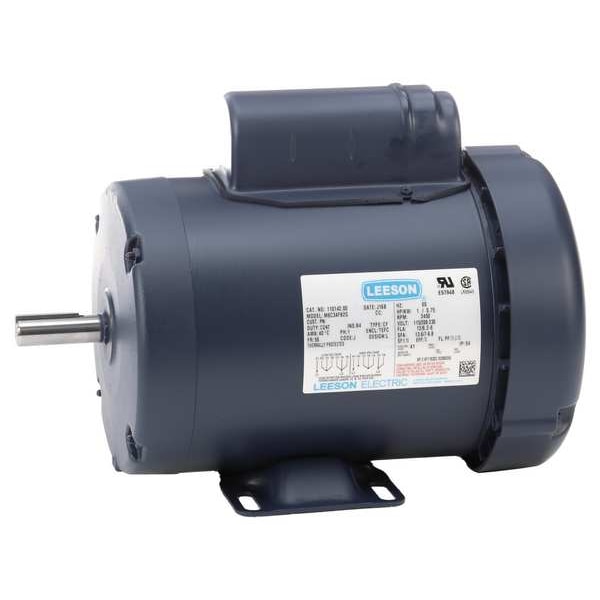

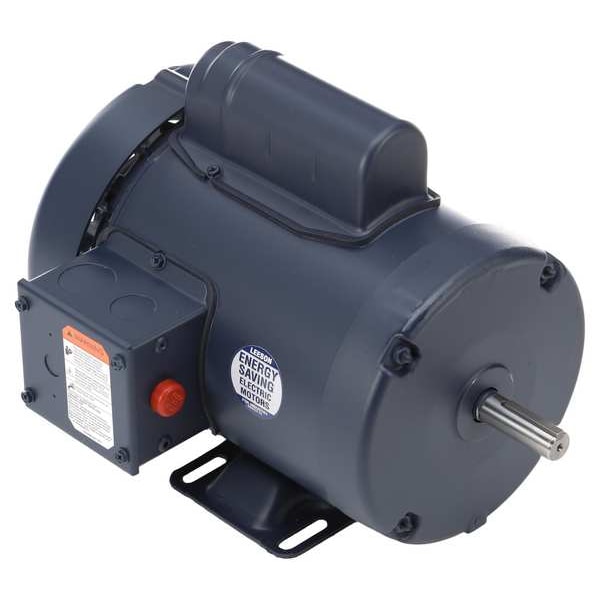

Motores TEFC de fase única, 1 hp, 3450 RPM.
| Item | Single Phase TEFC Motors |
|---|---|
| Includes | Key |
| Motor Application | General Application |
| Voltage Compatibility | 115/208-230V AC |
| Inverter Rated | No |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Weight | 31 lb |
| Ins. Class | B |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Max. Ambient Temp. | 104 Degrees F |
| Overall Length | 12 in |
| Standards | CSA, UL |
| Motor Shaft Design | Keyed |
| Full Load Amps | 12.0/6.2-6.0 A |
| Phase | Single |
| Length Less Shaft | 10-1/16 in |
| Usable @ 200V | Yes |
| Voltage | 115/208-230V AC |
| HP | 1 |
| Service Factor @ 50Hz | 1.15 |
| NEMA Design | L |
| No. of Speeds | 1 |
| Motor Service Factor | 1.15 |
| Nameplate RPM | 3,450 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Manufacturers Warranty Length | 18 mo |
| Removable Base | Permanently Lubricated Bearings |
| Motor Thermal Protection | Manual |
| Bearing Protection | Double Shields |
| Motor Bearings | Ball |
| Part Winding Start Capable | No |
| Nominal Efficiency | 70% |
| Motor Frame Material | Rolled Steel |
| Frame | 56 |
| Hz | 60 Hz |
| Shaft Length | 1 7/8 in |
| Duty Cycle | Continuous |
| Usable @ 208V | Yes |
| Package Quantity | 1 |
