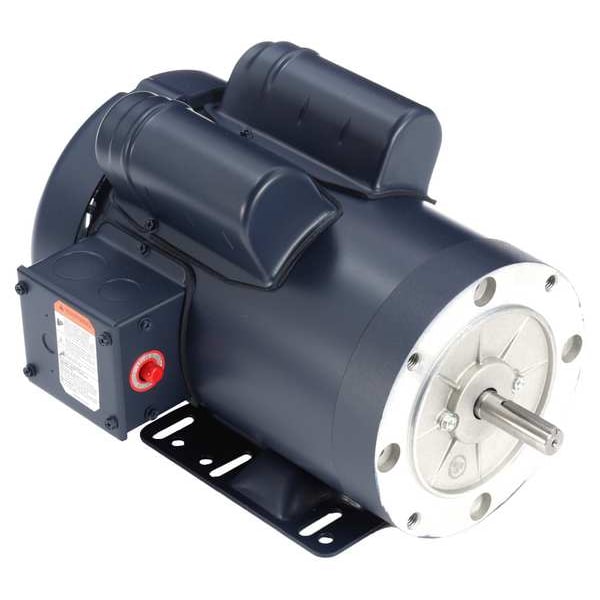

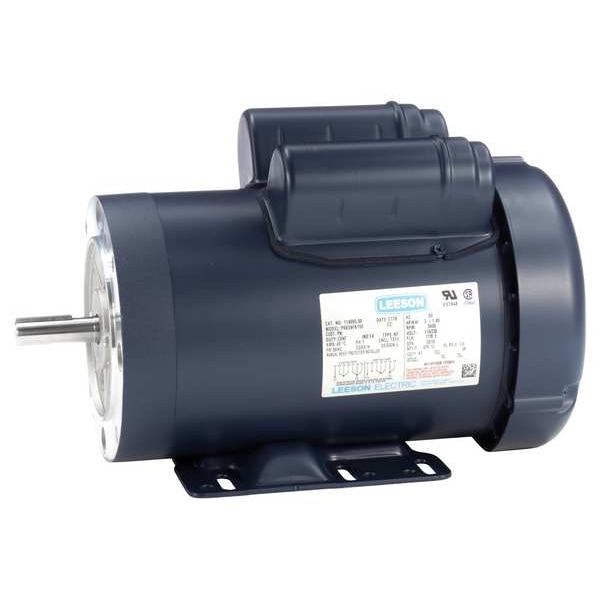

Motores TEFC monofásicos, 2 hp, 3450 RPM.
| Item | Single Phase TEFC Motors |
|---|---|
| Includes | Key |
| CC Number | Exempt |
| Shaft Dia. | 5/8 in |
| Nameplate RPM | 3,450 |
| Motor Thermal Protection | Manual |
| Motor Mounting Position | Horizontal |
| Motor Design | Capacitor-Start, Run |
| Length Less Shaft | 11-9/16 in |
| Usable @ 200V | No |
| No. of Speeds | 1 |
| Part Winding Start Capable | No |
| Bearing Protection | Double Shields |
| Inverter Rated | No |
| Motor Service Factor | 1.15 |
| Manufacturers Warranty Length | 18 mo |
| Motor Frame Material | Rolled Steel |
| Motor Bearings | Ball |
| RPM Range | 3,001-3,600 |
| Motor Mounting Type | Rigid Base |
| Weight | 45 lb |
| Motor Sub Application | Not Applicable |
| Max. Ambient Temp. | 104 Degrees F |
| Ins. Class | F |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Removable Base | Permanently Lubricated Bearings |
| Motor Shaft Design | Keyed |
| Phase | Single |
| Usable @ 208V | No |
| Motor Shaft Rotation | CW/CCW |
| Shaft Length | 1 7/8 in |
| Overall Length | 13-1/2 in |
| Hz | 60 Hz |
| Nominal Efficiency | 78.5% |
| Standards | CSA, UL |
| Duty Cycle | Continuous |
| Service Factor @ 50Hz | 1.15 |
| HP | 2 |
| Motor Application | General Application |
| Full Load Amps | 17.0/8.5 A |
| NEMA Design | L |
| Voltage | 115/230V AC |
| Voltage Compatibility | 115/230V AC |
| Frame | 56 HC |
| Package Quantity | 1 |
