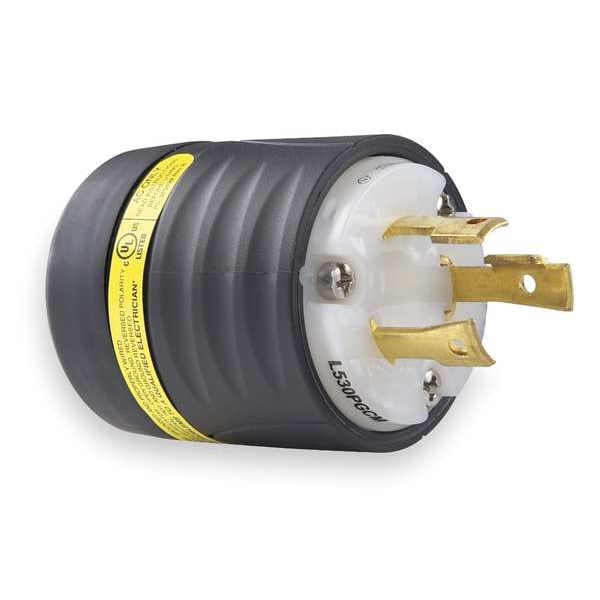

3 Wire Ground Monitoring Plug 125VAC 30A
| Item - Plugs and Receptacles | Ground Continuity Monitoring Plug |
|---|---|
| Item | Ground Continuity Monitoring Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Specification |
| Amps - Plugs and Receptacles | 30 |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | L5-30P |
| Number of Wires | 3 |
| Antimicrobial | No |
| Color | Black, White |
| Number of Poles | 2 |
| Amps | 30 |
| Special Features | Moisture, Dust and Weather Resistant |
| Voltage | 125VAC |
| Phase | Single |
| Material | Nylon |
| Corrosion Resistant | No |
| Standards | UL Listed |
| Grade | Federal Specification |
| Color - Plugs and Receptacles | Black, White |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Cord Size | 0.385 to 1.15 in |
| Type | Plug Tail |
| Number of Blades | 3 |
| Power Indicating Light | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| For Minimum Cable Diameter | 0.385 in |
| Overall Length | 2.791 in |
| Reverse Service | Yes |
| Maximum Operating Temperature | 75 deg C |
| Outside Diameter | 1.516 in |
| Minimum Wire Size | 18 AWG |
| Housing Color | Black, White |
| Blade Material | Brass |
| Face Diameter | 1.358 in |
| Grounding | Grounded |
| NEMA Plug Configuration | L5-30P |
| Maximum Wire Size | 10 AWG |
| Market | Industrial |
| Shrouded | No |
| UL 94 Flammability Rating | V-2 |
| Voltage Rating | 125V AC |
| For Maximum Cable Diameter | 0.69 in |
| Wire Connection Type | Screw Terminals |
| Minimum Operating Temperature | -40 deg C |
| Current Rating | 30 A |
| Housing Material | Nylon |
| Application | Industrial |
| Package Quantity | 1 |
