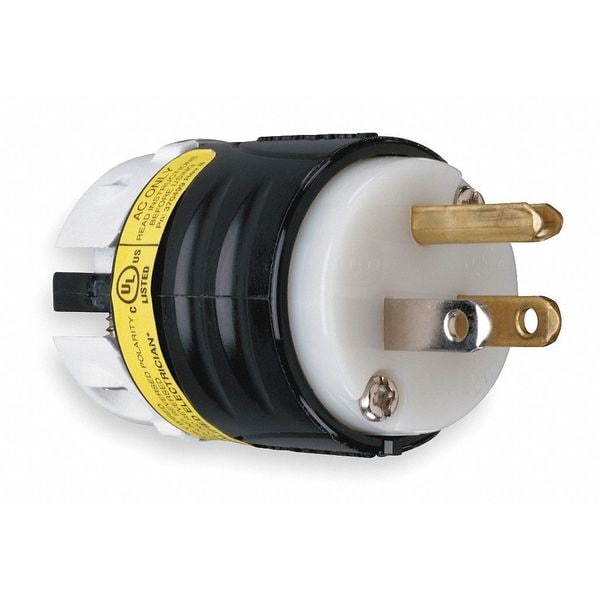

3 Wire Ground Monitoring Straight Blade Plug 125VAC 15A
| Item - Plugs and Receptacles | Ground Continuity Monitoring Straight Blade Plug |
|---|---|
| Item | Ground Continuity Monitoring Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Specification |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-15P |
| Number of Wires | 3 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Black, White |
| Number of Poles | 2 |
| Voltage | 125VAC |
| Grade | Specification |
| Amps | 15 |
| Phase | Single |
| Corrosion Resistant | No |
| Standards | UL Listed |
| Material | Nylon |
| Cord Size | 0.23 to 0.72 in |
| IP Rating | IP20 |
| Color - Plugs and Receptacles | Black, White |
| Special Features | Chemical-impact resistant, 2pc cord grip, dual, bright led indicators |
| Type | Plug Tail |
| Maximum Wire Size | 1/0 AWG |
| Voltage Rating | 125V AC |
| NEMA Plug Configuration | 5-15P |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| Minimum Wire Size | 14 AWG |
| Blade Material | Brass |
| Housing Color | Black, White |
| Reverse Service | Yes |
| For Maximum Cable Diameter | 0.72 in |
| Power Indicating Light | Yes |
| Housing Material | Nylon |
| Number of Blades | 3 |
| Market | Industrial |
| For Minimum Cable Diameter | 0.23 in |
| Current Rating | 15 A |
| Insulation Material | Nylon |
| Connection Orientation | Straight |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Nema Rating | 5 to 15 P |
| Wire Gauge | 0-14Awg |
| Application | Industrial |
| Package Quantity | 1 |
