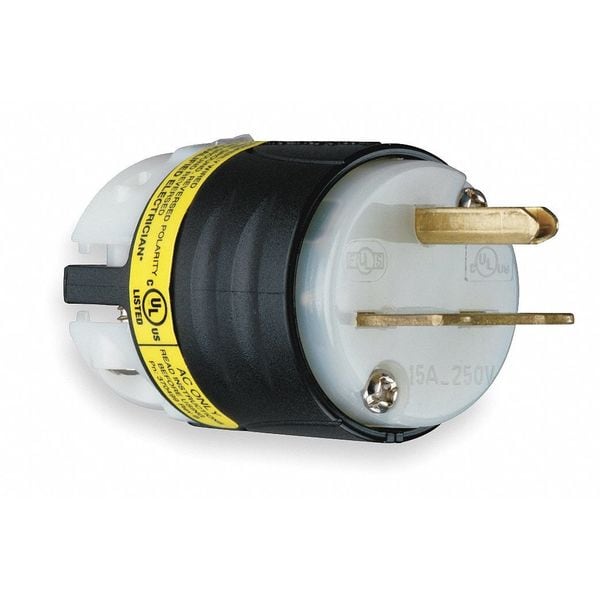

3 Wire Ground Monitoring Straight Blade Plug 250VAC 15A
| Item - Plugs and Receptacles | Ground Continuity Monitoring Straight Blade Plug |
|---|---|
| Item | Ground Continuity Monitoring Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Specification |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 6-15P |
| Number of Wires | 3 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Black, White |
| Number of Poles | 2 |
| Amps | 15 |
| Cord Size | 0.23 to 0.72 in |
| Corrosion Resistant | No |
| Voltage | 250VAC |
| Standards | UL 498 |
| Phase | Single |
| Material | Nylon |
| IP Rating | IP23 |
| Color - Plugs and Receptacles | Black, White |
| Grade | Specification |
| Special Features | Extra hard use, chemical, impact resistant, two piece cord grip, color coded terminal screws |
| Type | Plug Tail |
| NEMA Plug Configuration | 6-15P |
| For Maximum Cable Diameter | 0.72 in |
| Voltage Rating | 250V AC |
| Wire Connection Type | Screw Terminals |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Number of Blades | 3 |
| Insulation Material | Nylon |
| Reverse Service | Yes |
| Housing Color | Black, White |
| For Minimum Cable Diameter | 0.23 in |
| Maximum Wire Size | 12 AWG |
| Blade Material | Brass |
| Current Rating | 15 A |
| Grounding | Grounded |
| Connection Orientation | Straight |
| Power Indicating Light | Yes |
| Market | Commercial, Residential |
| Minimum Wire Size | 18 AWG |
| Housing Material | Nylon |
| Application | Residential/Commercial |
| Nema Rating | 6 to 15 P |
| Wire Gauge | 12-18Awg |
| Package Quantity | 1 |
