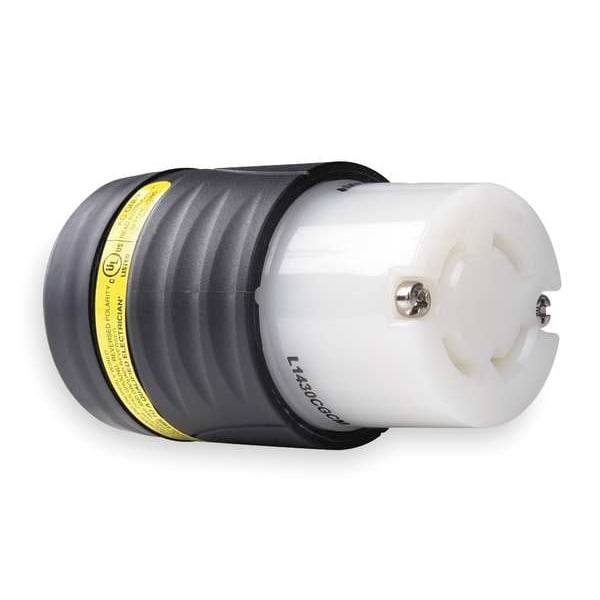

30A Ground Monitoring Connector 3P 4W 125/250VAC L14-30R
| Item | Ground Continuity Monitoring Locking Connector |
|---|---|
| Item - Plugs and Receptacles | Ground Continuity Monitoring Locking Connector |
| Amps - Plugs and Receptacles | 30 |
| NEMA Plug Configuration - Plugs and Receptacles | L14-30R |
| Amps | 30 |
| Voltage | 125/250VAC |
| Voltage - Plugs and Receptacles | 125/250V AC |
| Number of Poles | 3 |
| NEMA Configuration | L14-30 |
| Number of Wires | 4 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Black, White |
| Color | Black, White |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Grade - Plugs and Receptacles | Specification |
| Material | Nylon |
| Power Indicator | No |
| Corrosion Resistant | No |
| Standards | cULus Listed, UL Listed |
| Antimicrobial | No |
| Phase | Three |
| Cord Size | 0.385 to 1.15 in |
| IP Rating | Not Rated |
| Grade | Federal Specification |
| Special Features | Locking industrial spec grade turnlock, Dual bright led light |
| UL 94 Flammability Rating | V-2 |
| Maximum Operating Temperature | 75 deg C |
| Housing Material | Nylon |
| Outside Diameter | 1.516 in |
| Current Rating | 30 A |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Minimum Operating Temperature | -40 deg C |
| Reverse Service | Yes |
| For Maximum Cable Diameter | 1.15 in |
| Market | Industrial |
| Maximum Wire Size | 10 AWG |
| Grounding | Grounded |
| Voltage Rating | 125/250V AC |
| Housing Color | Black, White |
| Shrouded | No |
| Contact Material | Brass |
| Power Indicating Light | Yes |
| Connection Orientation | Straight |
| For Minimum Cable Diameter | 0.225 in |
| Midget Locking | No |
| Overall Length | 2.791 in |
| NEMA Receptacle Configuration | L14-30R |
| Minimum Wire Size | 18 AWG |
| Package Quantity | 1 |
