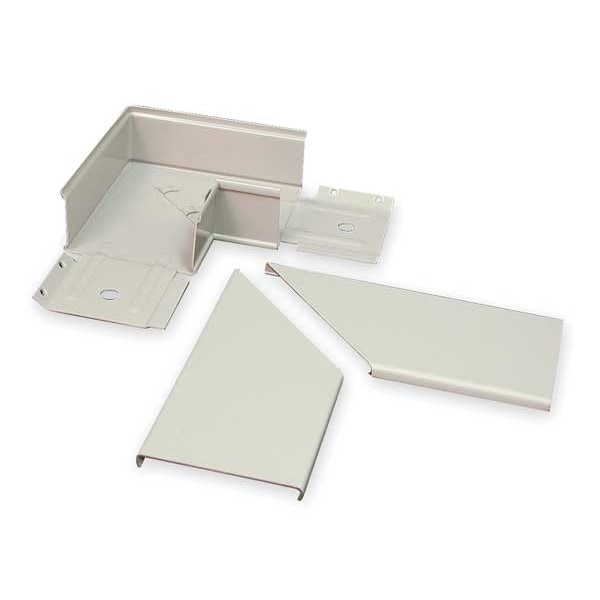

90 Deg Flat Elbow Raceway, 3000 Series, 1 Channel, 2-3/4 in W, 1.47 in H, 6 in L, Gray
| Item | Raceway |
|---|---|
| Type | 90 Deg Flat Elbow |
| Series | 3000 |
| Number of Channels | 1 |
| Width | 2-3/4 in |
| Height | 1.47 in |
| Length | 6 in |
| Material | Steel |
| Color | Gray |
| Cover Type | Screw On |
| For Use With | 3000 Raceway |
| Mounting Style | Screw On |
| Includes | (1) Flat Elbow |
| Standards | ADA Compliant, cULus, UL Listed, UL5 |
| For Raceway Height | 1-1/2 in |
| For Raceway Width x Height | 2-3/4 in x 1-15/32 in |
| For Raceway Width | 2-3/4 in |
| Features | Right Angle Turns on the Same Surface |
| Overall Length | 6 in |
| Compatible with Product Type | 3000 Raceways |
| Voltage | 600 V |
| Standard | cULus Listed Raceway:File E4376 Guide RJBT. Fittings: File E41751 Guide RJPR. Base & Blank Cover: Meets Article 386 of NEC. Meets Section 12-600 of CEC. |
| Application Sector | Commercial |
| Special Features | Mounts easily on walls, modular furniture, under raisedfloors, or over ceiling, speeds installation: providesflexibility to bring wiring to points of use. Removable cover, provides access to wiring. |
| Product Line | Wiremold |
| cULus Listed | Yes |
| Product Environmental Profile | Yes |
| Fittings Sub-Category | Elbows |
| Package Quantity | 1 |
