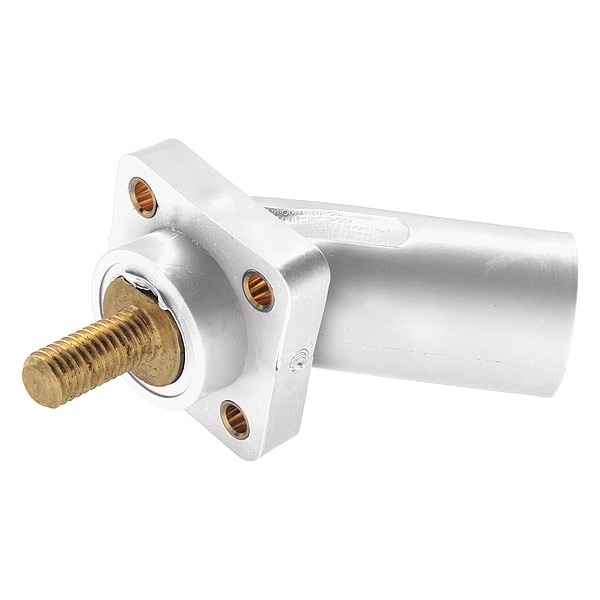

Este receptáculo angulado de Legrand en color blanco cuenta con conector macho Nema 3R, ideal para instalaciones profesionales.
| Item | Angled Receptacle |
|---|---|
| Color | White |
| Material | Santoprene |
| Current Rating | 400 A |
| Cable Range | 2/0 to 4/0 |
| Single Pole Device Style | Taper Nose |
| Standards | CSA Certified |
| Male/Female | Male |
| NEMA Rating | 3R |
| Voltage Rating | 600 V AC |
| Series | 16 |
| Amps AC/DC | 400AC/DC |
| Maximum Operating Temperature | 75 deg C |
| Housing Material | Santoprene |
| Compatible with Series | 16 |
| End Type | Taper Nose |
| Gender | Male |
| For Location | Indoor, Outdoor |
| Terminal Connection Type | Threaded Stud |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Minimum Operating Temperature | -40 deg C |
| Mounting Style | Through Hole Mounting |
| Minimum Wire Size | 2 AWG |
| Includes Mounting Hardware | No |
| NEMA Enclosure Rating | 3R |
| Housing Color | White |
| Maximum Wire Size | 4/0 AWG |
| Package Quantity | 1 |
