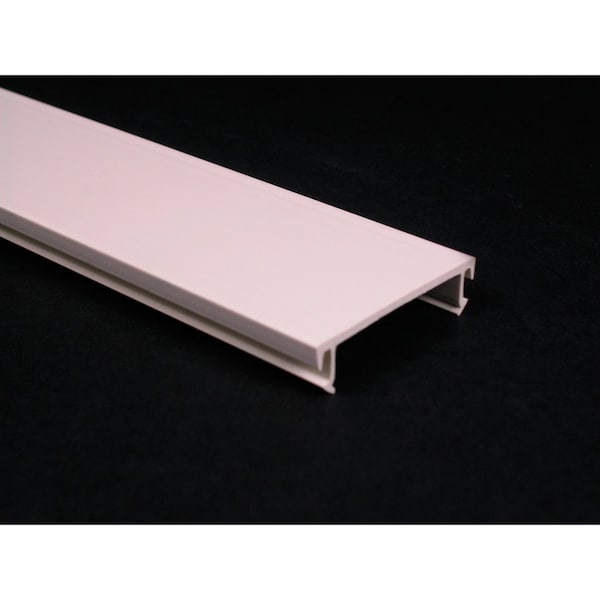

Cover, CableSmart 40N2 Series, 2 Channel, 2 3/16 in W, 1/2 in H, 96 in L, White
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Cover |
| Fittings Sub-Category | Covers |
| Type | Raceway |
| Color | White |
| For Use With | CableSmart 40N2 Raceways |
| Material | PVC |
| Height | 1/2 in |
| Length | 96 in |
| Width | 2-3/16 in |
| Cover Type | Snap On, Latching |
| Standards | Complies with Flammability Requirements of UL-5A, File E90378 Guide RJTX, Fittings: File E90377 Guide RJYT, Meets Article 388 of NEC, Meets Section 12-1600 of CEC, PEP, RoHS, UL Listed for up to 600V |
| Series | CableSmart 40N2 |
| Number of Channels | 2 |
| Length (Straight Wireway) | 96 in |
| Length (In.) | 96 |
| For Raceway Width | 4 in |
| Width (In.) | 4 |
| Raceway Material | Plastic |
| Features | Use with 40N2B08 Base |
| For Raceway Width x Height | 2 in x 4 in |
| Height (In.) | 2 |
| For Raceway Height | 2 in |
| Depth | 1/2 in |
| Voltage | 600 V |
| Application Sector | Commercial, Residential |
| Special Features | Extremely tamper-resistant. FiberReady® 2" [51mm] fittings. Available prewired. New transition fitting options. High capacity device box options. Corner drop feed. |
| Standard | cULus Listed Raceway: File E90378 Guide RJTX. Complies with Flammability requirements of UL-5A. Fittings: File E90377 Guide RJYT. Meets Article 388 of NEC. UL Listed for up to 600V. Meets Section 12-1600 of CEC. |
| Compatibility | CableSmart 40N2 Large Capacity Raceway |
| Product Type | Cable Routing |
| Product Series | 40N2 |
| Product Color | White |
| Cable Manager Type | Cover |
| Product Line | CableSmart |
| Product Name | CableSmart 40N2 Full Width Raceway Cover |
| Product Environmental Profile | Yes |
| cULus Listed | Yes |
| Package Quantity | 1 |
