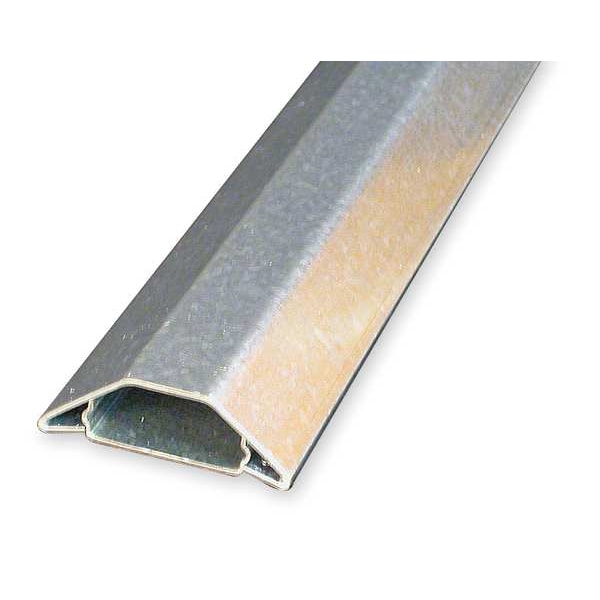

Cover Plate Raceway, 2600 Series, 1 Channel, 2-1/4 in W, 3/4 in H, 10 ft L, Gray
| Item | Raceway |
|---|---|
| Type | Cover Plate |
| Series | 2600 |
| Number of Channels | 1 |
| Width | 2-1/4 in |
| Height | 3/4 in |
| Length | 10 ft |
| Material | Steel |
| Color | Gray |
| Cover Type | Snap On |
| Standards | PEP, RoHS |
| Mounting Style | Screw On |
| Outdoor Use | Yes |
| Voltage | 600 V |
| Special Features | Full line of fittings, provides a complete and safe installation. Paintable to match decor. Flat profile, unobtrusive, low-profile appearance. Galvanized steel, assures durability. |
| Standard | cULus Listed Underfloor Raceways: File E4376 Guide RJBT. Fittings: File E41751 Guide RJPR. Meets Article 386 of NEC. Meets Section 12-1600 of CEC. |
| Application Sector | Commercial |
| Features | Cover: .050'' galvanized steel. Base: .040'' (1.0mm) galvanized steel. Packed five 10' (3m) lengths per carton. Base has 9/32'' (7.1mm) diameter mounting holes on centers of approximately 8'' (203mm). |
| cULus Listed | Yes |
| Product Line | Wiremold |
| Width (In.) | 2.22 |
| Length (In.) | 120 |
| Height (In.) | 0.72 |
| Package Quantity | 1 |
