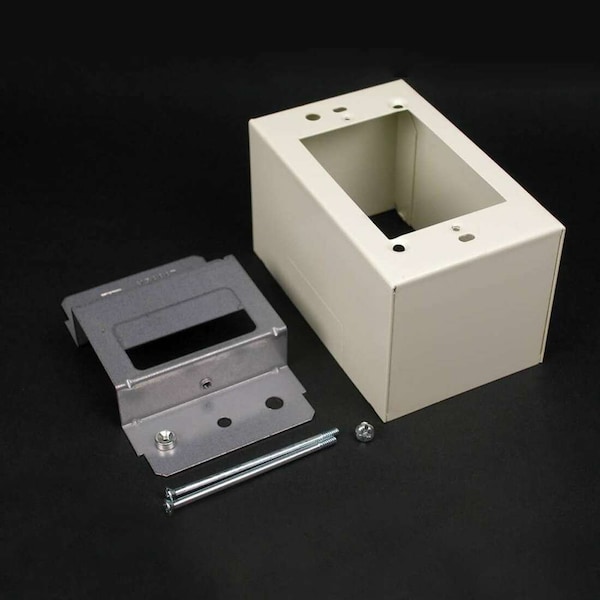

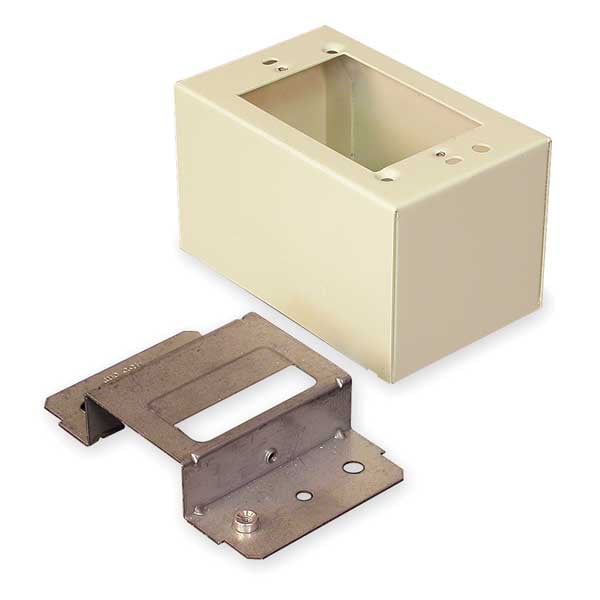

Device Box, Gang Box Type, 1 Gang, Steel
| Item | Device Box |
|---|---|
| Box Type | Gang |
| Number of Gangs | 1 Gang |
| Material | Steel |
| Length | 4-5/8 in |
| Width | 2-7/8 in |
| Color | Ivory |
| Height | 2-3/4 in |
| Fittings Sub-Category | Boxes |
| For Use With | 2400 Raceways |
| Standards | File E41751 Guide RJPR, Meets Article 386 of NEC and Meets Section 12-600 of CEC, RoHS, UL and cUL Listed File E4376 Guide RJBT |
| Mounting Style | Screw On |
| Series | 2400D |
| Number of Channels | 2 |
| Length (Straight Wireway) | 4.62 in |
| Raceway Material | Steel |
| Mounting | Screw On |
| Backing | Non-Adhesive |
| Function | Accepts Industry Standard and Proprietary Devices From a Wide Range of Manufacturers to Provide a Seamless and Aesthetically Pleasing Interface for Voice, Data, Audio, and Video Applications At the Point of Use |
| Overall Depth | 2-3/4 in |
| For Raceway Width | 1 7/8 in |
| Features | Bend Radius Control Fittings, Communication Connectivity Options, Complete Line Of Fittings, Downward Facing Activations, Removable Cover |
| For Raceway Width x Height | 1 7/8 in x 7/8 in |
| Height (In.) | 2-3/4 |
| Material of Construction | Steel |
| Length (In.) | 4-5/8 |
| Width (In.) | 2-7/8 |
| For Raceway Height | 7/8 in |
| Cover Closure | Screw On |
| Standard | cULus Listed Raceway: FileE4376 Guide RJBT. Fittings: File E41751 Guide RJPR. Base & Blank Cover: Meets Article 386 of NEC. Meets Section 12-600 of CEC. |
| Special Features | Steel raceway, provides superior strength for any dry location. Tough durable ScuffCoat finish makes a scratch-resistant surface that can be painted. |
| Product Environmental Profile | Yes |
| Package Quantity | 1 |
