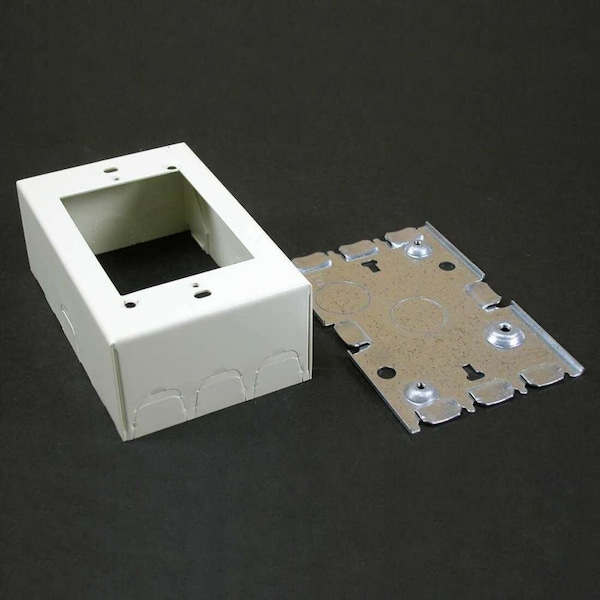

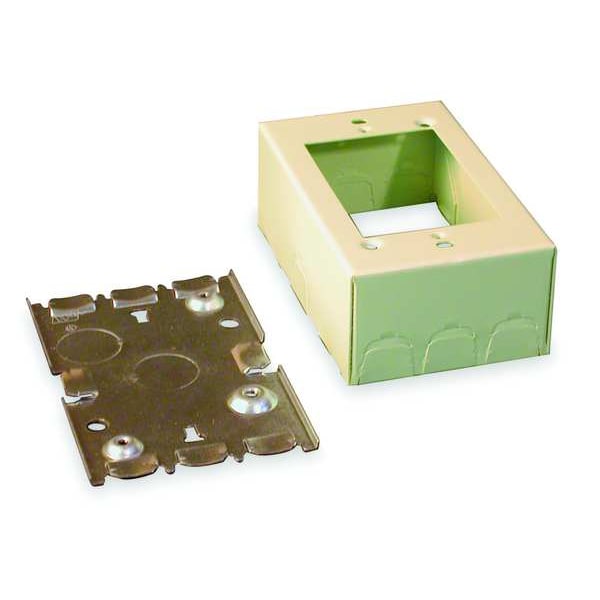

Device Box, Gang Box Type, 1 Gang, Steel
| Item | Device Box |
|---|---|
| Box Type | Gang |
| Number of Gangs | 1 Gang |
| Material | Steel |
| Length | 4-3/4 in |
| Width | 2.87 in |
| Color | Ivory |
| For Use With | 700 Raceways, 500 Raceways |
| Fittings Sub-Category | Boxes |
| Height | 1-3/4 in |
| Standards | File E41751 Guide RJPR, Meets Article 386 of NEC and Meets Section 12-600 of CEC, RoHS, UL and cUL Listed File E4376 Guide RJBT |
| Series | 500, 700 |
| Number of Channels | 2 |
| Mounting Style | Screw On |
| Length (Straight Wireway) | 4.62 in |
| Length (In.) | 4-3/4 |
| Backing | Non-Adhesive |
| Overall Depth | 1-7/8 in |
| Features | Fittings Have Removable Covers, Low Profile, Scuffcoat Finish |
| Width (In.) | 2.87 |
| Knockouts | (2) 1/2 in Trade Size |
| Height (In.) | 3 |
| Material of Construction | Steel |
| Function | Accepts Industry Standard and Proprietary Devices From a Wide Range of Manufacturers to Provide a Seamless and Aesthetically Pleasing Interface for Voice, Data, Audio, and Video Applications At the Point of Use |
| Mounting | Screw On |
| Cover Closure | Screw On |
| Basic Material | Steel |
| Standard | cULus Listed Surface Metal Raceway: File E41751: Guide RJPR |
| Special Features | Low-profile, unobtrusive appearance., Surface mounting, UL5 and ADA compliant, UL and cUL Listed component raceways |
| Mount Type | Surface Mount |
| Product Environmental Profile | Yes |
| Package Quantity | 1 |
