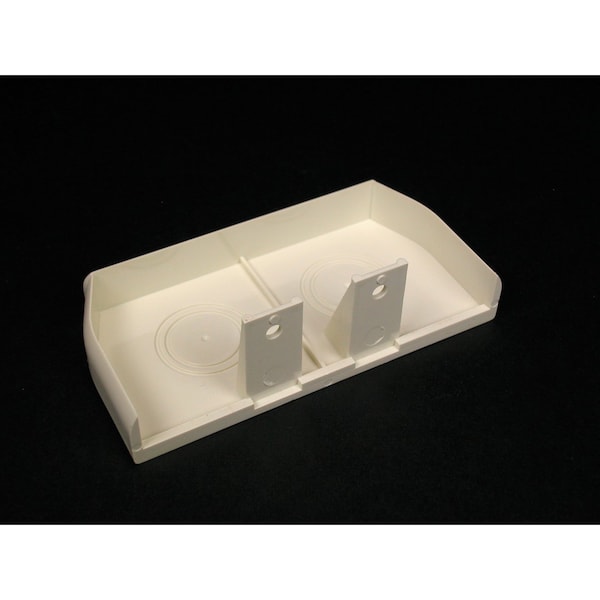

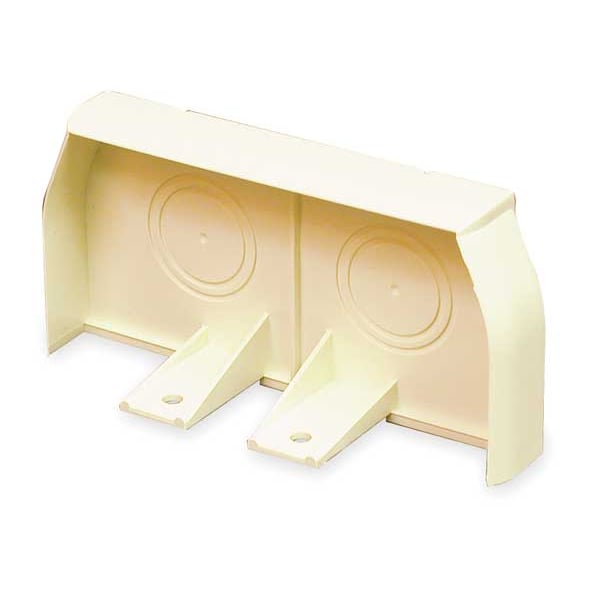

End Cap, CableSmart 40N2 Series, 4 in W, 2 in H, 0.6875 in L, Ivory
| Item | End Cap |
|---|---|
| Fittings Sub-Category | Caps |
| Color | Ivory |
| For Use With | 40N2 Raceway |
| Material | Non-Metallic |
| Height | 2 in |
| Length | 11/16 in |
| Width | 4 in |
| Standards | cUL Listed, UL Listed |
| Series | CableSmart 40N2 |
| Length (Straight Wireway) | 11/16 in |
| Overall Height | 2 in |
| For Raceway Width x Height | 4 in x 2 in |
| Overall Width | 4 in |
| For Raceway Width | 4 in |
| For Raceway Height | 2 in |
| Raceway Material | Plastic |
| Height (In.) | 2 |
| Overall Length | 3/4 in |
| Length (In.) | 11/16 |
| Compatible with Product Type | 40N2 Raceways |
| Features | Can Be Used to Feed Raceway Using 1/2 in or 3/4 in Trade Size Conduit, Closes Off Open End of Raceway, Holes for Conduit Must be Drilled, Use a Step Drill or Other Means |
| Width (In.) | 4 |
| Voltage | 600 V |
| Application Sector | Commercial, Residential |
| Standard | cULus Listed Raceway: File E90378 Guide RJTX. Complies with Flammability requirements of UL-5A. Fittings: File E90377 Guide RJYT. Meets Article 388 of NEC. UL Listed for up to 600V. Meets Section 12-1600 of CEC. |
| Special Features | Extremely tamper-resistant. FiberReady® 2" [51mm] fittings. Available prewired. New transition fitting options. High capacity device box options. Corner drop feed. |
| Type | Raceway |
| Product Type | Cable Routing |
| Product Name | CableSmart 40n2 Blank End Fitting |
| Compatibility | CableSmart 40N2 Large Capacity Raceway |
| Product Color | Ivory |
| Cable Manager Type | End Fitting |
| Product Environmental Profile | Yes |
| Product Line | Wiremold |
| cULus Listed | Yes |
| Package Quantity | 1 |
