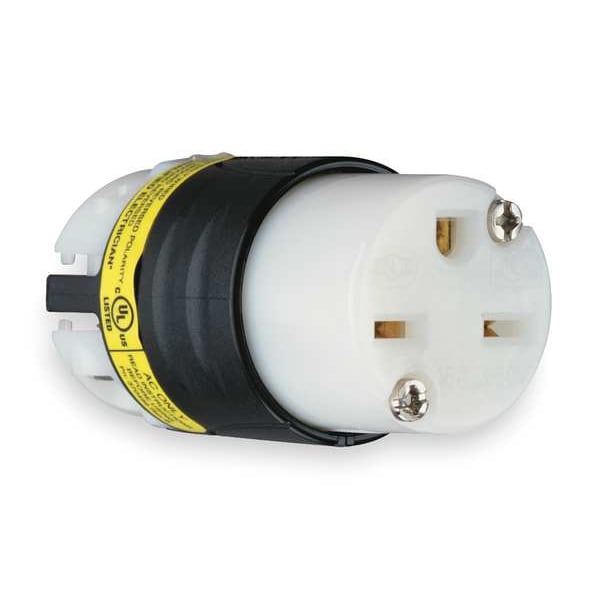

Ground Monitoring Connector, 6-15R, 15A
| Item - Plugs and Receptacles | Ground Continuity Monitoring Straight Blade Connector |
|---|---|
| Amps - Plugs and Receptacles | 15 |
| Voltage | 250VAC |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Receptacle Configuration | 6-15R |
| NEMA Plug Configuration - Plugs and Receptacles | 6 to 15 R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | White, Black |
| Grade - Plugs and Receptacles | Specification |
| Antimicrobial | No |
| Special Features | Moisture, Dust, and Weather Resistant |
| Corrosion Resistant | No |
| Standards | cULus Listed, UL 498 |
| Material | Nylon |
| Grade | Specification |
| Phase | Single |
| Amps | 15 |
| Cord Size | 0.23 to 0.72 in |
| Color | Black, White |
| Power Indicator | No |
| Item | Ground Continuity Monitoring Straight Blade Connector |
| IP Rating | IP20 |
| For Maximum Cable Diameter | 0.72 in |
| Maximum Wire Size | 12 AWG |
| Power Indicating Light | No |
| Wire Connection Type | Screw Terminals |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Current Rating | 15 A |
| Minimum Wire Size | 18 AWG |
| Contact Material | Brass |
| For Minimum Cable Diameter | 0.23 in |
| Market | Commercial, Residential |
| Housing Color | Black |
| Connection Orientation | Straight |
| Housing Material | Nylon |
| Voltage Rating | 250 V AC |
| Package Quantity | 1 |
