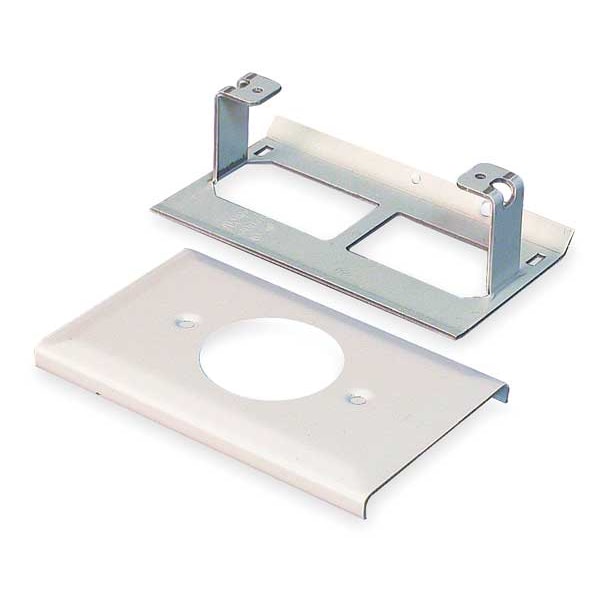

Raceway Single Receptacle Cover, 3000 Series, 1, 2 Channel, 2 3/4 in W, 1 1/2 in H, 4 1/2 in L
| Item | Single Receptacle Cover |
|---|---|
| Type | Raceway |
| Cover Type | Latching, Snap On |
| Height | 1-1/2 in |
| Length | 4-1/2 in |
| Fittings Sub-Category | Covers |
| Color | Gray |
| Width | 2-3/4 in |
| For Use With | 3000 Raceways |
| Material | Steel |
| Number of Channels | 1, 2 |
| Finish | Unfinished |
| Includes | G3007C Device Bracket |
| Series | 3000 |
| Standards | Base and Blank Cover: Meets Article 386 of NEC, File E4376 Guide RJBT, Fittings: File E41751 Guide RJPR, Meets Section 12-600 of CEC, PEP, RoHS |
| Length (Straight Wireway) | 4-1/2 in |
| For Raceway Height | 1-1/2 in |
| Height (In.) | 1-1/2 |
| Mounting Hole Diameter | 1-5/8 in |
| For Raceway Width | 2-3/4 in |
| For Raceway Width x Height | 2-3/4 in x 1-1/2 in |
| Features | For Installing of Commercially Straight Blade and Locking Single Receptacle |
| Length (In.) | 4-1/2 |
| Hole Dia. (In.) | 1.56 to 1.57 |
| Width (In.) | 2-3/4 |
| Basic Material | Steel |
| Special Features | Mounts easily on walls, modular furniture, under raisedfloors, or over ceiling, speeds installation: providesflexibility to bring wiring to points of use. Removable cover, provides access to wiring. |
| Voltage | 600 V |
| Application Sector | Commercial |
| Standard | cULus Listed Raceway:File E4376 Guide RJBT. Fittings: File E41751 Guide RJPR. Base & Blank Cover: Meets Article 386 of NEC. Meets Section 12-600 of CEC. |
| Product Line | Wiremold |
| Product Environmental Profile | Yes |
| Package Quantity | 1 |
