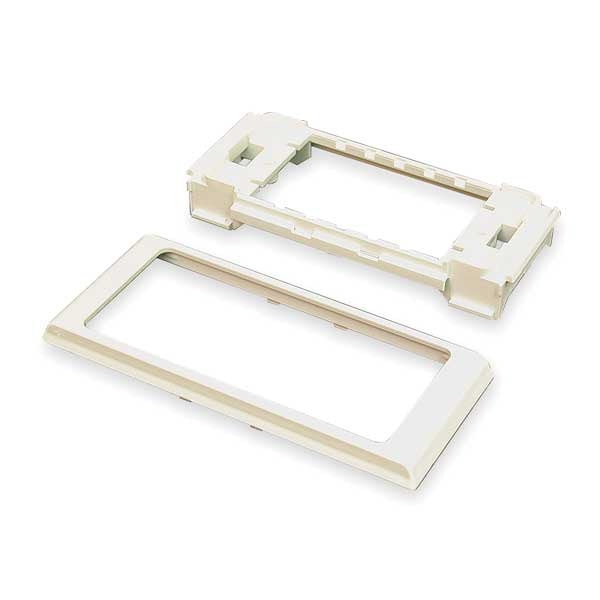

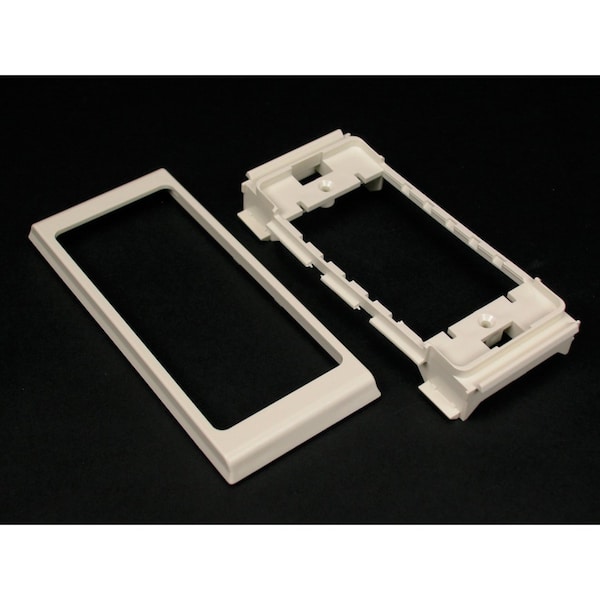

Raceway Twin Cover Device Bracket, CableSmart 40N2 Series, 2 3/16 in W, 3/4 in H, 5 1/4 in L, White
| Item | Twin Cover Device Bracket |
|---|---|
| Type | Raceway |
| Color | White |
| Length | 5-1/4 in |
| Fittings Sub-Category | Brackets |
| Material | PVC |
| For Use With | CableSmart 40N2 Raceways |
| Width | 2-3/16 in |
| Height | 3/4 in |
| Series | CableSmart 40N2 |
| Standards | PEP, RoHS |
| Length (Straight Wireway) | 5-1/4 in |
| Height (In.) | 3/4 |
| Raceway Material | Plastic |
| Length (In.) | 5-1/4 |
| Features | Used for Power or Communications Devices in a Single Compartment |
| For Raceway Width | 4 in |
| For Raceway Height | 2 in |
| Width (In.) | 2.187 |
| For Raceway Width x Height | 2 in x 4 in |
| Voltage | 600 V |
| Special Features | Extremely tamper-resistant. FiberReady® 2" [51mm] fittings. Available prewired. New transition fitting options. High capacity device box options. Corner drop feed. |
| Standard | cULus Listed Raceway: File E90378 Guide RJTX. Complies with Flammability requirements of UL-5A. Fittings: File E90377 Guide RJYT. Meets Article 388 of NEC. UL Listed for up to 600V. Meets Section 12-1600 of CEC. |
| Application Sector | Commercial, Residential |
| Product Model | 40N2F31WH |
| Product Color | White |
| Product Name | CableSmart 40N2 Twin Cover Device Bracket Fitting |
| Compatibility | Wiremold CableSmart 40N2 Large Capacity Raceway, Wiremold 5507 Series Faceplate, For use with Ortronics TracJack Individual Jack System, Ortronics Series II Front-Loading Module System, and Wiremold Open System Communications Module |
| Product Type | Mounting Bracket |
| Device Supported | Cable Raceway, Power Equipment, Communication Module, Faceplate |
| Product Environmental Profile | Yes |
| Product Line | Wiremold |
| cULus Listed | Yes |
| Package Quantity | 1 |
