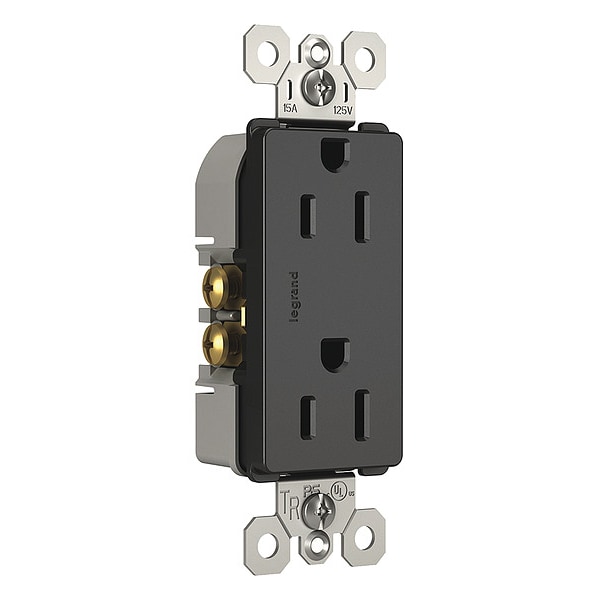

El receptáculo Legrand es una toma doble decorativa de montaje al ras, con capacidad para 15 amperios y 125V de corriente alterna. Con diseño en color gris, es ideal para instalaciones profesionales y brinda un acabado estético y funcional a los espacios.
| Item | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | General Purpose |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | Yes |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Gray |
| Wiring Method - Plugs and Receptacles | Side, Push |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Mounting Type | Box |
| Item - Plugs and Receptacles | Receptacle |
| Wiring Method | Back, Side |
| Standards | cULus Listed |
| Color | Graphite |
| Material | Thermoplastic |
| Includes | Grounding Clip, Mounting Hardware |
| Voltage | 125 V |
| Number of Gangs | 1 |
| Outlet Type | Tamper-Resistant |
| Current Rating | 15 A |
| Wire Connection Type | Push In |
| Grade | General Use |
| Receptacle Type | Duplex |
| AFCI | No |
| Includes Mounting Hardware | Yes |
| Market | Residential |
| Housing Color | Graphite |
| Voltage Rating | 125V AC |
| Mount Hole Center-to-Center Height | 3.2 in |
| Contact Material | Brass |
| Grounding | Grounded |
| Overall Depth | 1 in |
| Connection Orientation | Straight |
| Maximum Wire Size | 12 AWG |
| Face Plate Height | 2.6 in |
| Face Plate Width | 1.3 in |
| Housing Material | Thermoplastic |
| Surge Protection | No |
| Resistance Properties | Tamper Resistant |
| Minimum Wire Size | 14 AWG |
| GFCI | No |
| NEMA Receptacle Configuration | 5-15R |
| Amperage | 15 A |
| Nema Rating | 15A |
| Indoor/Outdoor | Indoor |
| Finish | Graphite |
| Environmental Conditions | 95 |
| Is Tamper-Resistant | Yes |
| Number of Receptacles | 2 |
| NEMA Configuration Code | 5 to 15 R |
| Package Quantity | 1 |
