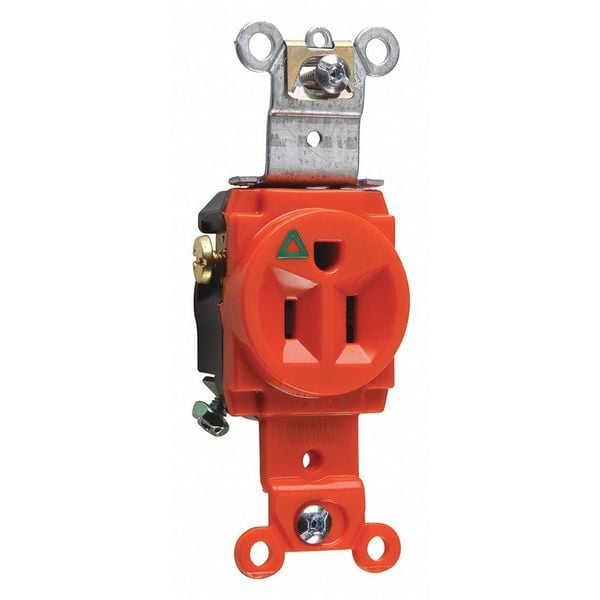

Receptacle, 15 A Amps, 125V AC, Flush Mount, Single Outlet, 5-15R, Orange
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Orange |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Amps - Plugs and Receptacles | 15 |
| Corrosion Resistant | Yes |
| Standards | CSA Certified C22.2 No. 42, cUL Listed, UL 498 |
| Sub-Category | Single Receptacles |
| Special Features | Corrosion resistant |
| HP | 1/2 hp |
| Number of Gangs | 1 |
| Material | Nylon |
| Color | Orange |
| Phase | Single |
| Voltage | 125 V |
| Wiring Method | Back, Side |
| Contact Material | Brass |
| UL 94 Flammability Rating | V-2 |
| Housing Material | Nylon |
| Grade | Federal Specification |
| Current Rating | 15 A |
| Minimum Operating Temperature | -40 deg F |
| Surge Protection | No |
| Maximum Operating Temperature | 140 deg F |
| Minimum Wire Size | 14 AWG |
| Resistance Properties | Corrosion Resistant |
| Voltage Rating | 125V AC |
| Housing Color | Orange |
| NEMA Receptacle Configuration | 5-15R |
| Mount Type | Flush |
| Horsepower Rating | 0.5 HP |
| Receptacle Type | Single |
| Market | Commercial |
| Grounding | Isolated Ground |
| Maximum Wire Size | 10 AWG |
| Connection Orientation | Straight |
| Nema Rating | 5-15R |
| Dielectric Strength | Withstands 2000V minimum |
| Standard | UL498, CSA C22.2 No. 42 |
| Connection | Back and Side Wired |
| Wire Size | #14 - #10 |
| Amperage | 15 A |
| Application Sector | Commercial |
| Temperature Rating | Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact |
| Environmental Conditions | Flammability: UL94 V2 |
| Package Quantity | 1 |
