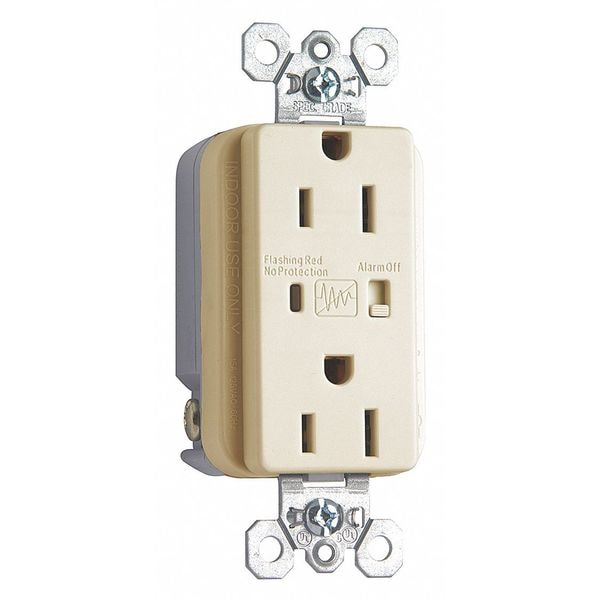

Receptacle, 15 A Amps, 125V AC, Flush Mount, Standard Duplex Outlet, 5-15R, Ivory
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | Yes |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | Yes |
| Special Features | Corrosion resistant |
| Material | Thermoplastic Polyester |
| Sub-Category | Duplex Receptacles |
| Phase | Single |
| HP | 1/2 hp |
| Standards | ANSI/EEE C62.41 (Formerly IEEE 587) ANSI/IEEE C62.45, CSA Certified C22.2 No. 42, cUL, UL1449 UL 498 |
| Amps - Plugs and Receptacles | 15 |
| Color | Ivory |
| Number of Gangs | 1 |
| Corrosion Resistant | Yes |
| Wiring Method | Back, Side |
| Voltage | 125 V |
| Surge Protection | Yes |
| Voltage Rating | 125V AC |
| Includes Mounting Hardware | Yes |
| Resistance Properties | Impact Resistant |
| Visual Indicator Lights | Power Connected |
| Overall Depth | 1.2 in |
| Face Plate Width | 1.8 in |
| Maximum Operating Temperature | 131 deg F |
| Housing Material | Thermoplastic |
| Market | Commercial, Residential |
| Includes | Grounding Clip, Mounting Hardware |
| Receptacle Type | Duplex |
| Face Plate Height | 2.8 in |
| Contact Material | Copper Alloy |
| Horsepower Rating | 0.5 HP |
| Grounding | Isolated Ground |
| Current Rating | 15 A |
| Grade | Federal Specification |
| Connection Orientation | Straight |
| Mount Type | Flush |
| Housing Color | Ivory |
| Mount Hole Center-to-Center Height | 3.8 in |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-Center Width | 0.9 in |
| Minimum Operating Temperature | -4 deg F |
| UL 94 Flammability Rating | V-2 |
| Maximum Wire Size | 10 AWG |
| NEMA Receptacle Configuration | 5-15R |
| Environmental Conditions | Flammability: UL94 V2 |
| Amperage | 15 A |
| Standard | cUL UL1449, UL498: CSA C22.2 No. 42: ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation Categories €œA€ (Ring Wave) (Unidirectional Impulse). |
| Connection | Back and Side Wired |
| Application Sector | Commercial |
| Package Quantity | 1 |
