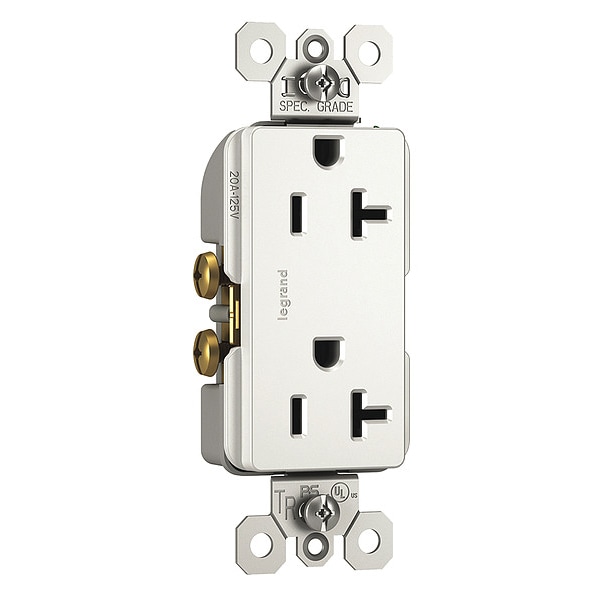

Receptáculo, 20 amperios, 125V CA, montaje al ras, tomacorriente dúplex decorativo, 5-20R, blanco.
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | Commercial, Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | Yes |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | White |
| Wiring Method - Plugs and Receptacles | Side, Push |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Wiring Method | Back, Side |
| Standards | CSA Certified C22.2 No. 42, CSA Certified LR16063, NEMA WD-1 and WD-6, UL 498, UL E140596 |
| Mounting Type | Box |
| Number of Gangs | 1 |
| Finish | Matte |
| Voltage | 125 V |
| Material | Nylon |
| Color | White |
| Outlet Type | Tamper-Resistant |
| Includes Mounting Hardware | Yes |
| Voltage Rating | 125V AC |
| Minimum Wire Size | 14 AWG |
| Grade | Federal Specification |
| Market | Commercial, Industrial, Residential |
| Connection Orientation | Straight |
| Housing Color | White |
| Current Rating | 20 A |
| Contact Material | Brass |
| Minimum Operating Temperature | -40 deg F |
| Resistance Properties | Corrosion Resistant |
| Surge Protection | No |
| Grounding | Grounded |
| Mount Type | Flush |
| Maximum Wire Size | 10 AWG |
| Wire Connection Type | Screw Terminals |
| Receptacle Type | Duplex |
| UL 94 Flammability Rating | V-2 |
| Face Plate Width | 1.4 in |
| NEMA Receptacle Configuration | 5-20R |
| Includes | Auto-Ground Clip, Mounting Hardware |
| Mount Hole Center-to-Center Height | 3.9 in |
| Housing Material | Nylon |
| Face Plate Height | 3.3 in |
| NEMA Configuration Code | 5-20R |
| Is Tamper-Resistant | Yes |
| Nema Rating | 20A |
| Number of Receptacles | 2 |
| Indoor/Outdoor | Indoor |
| Environmental Conditions | 95 (relative humidity, non-condensing) |
| Package Quantity | 1 |
