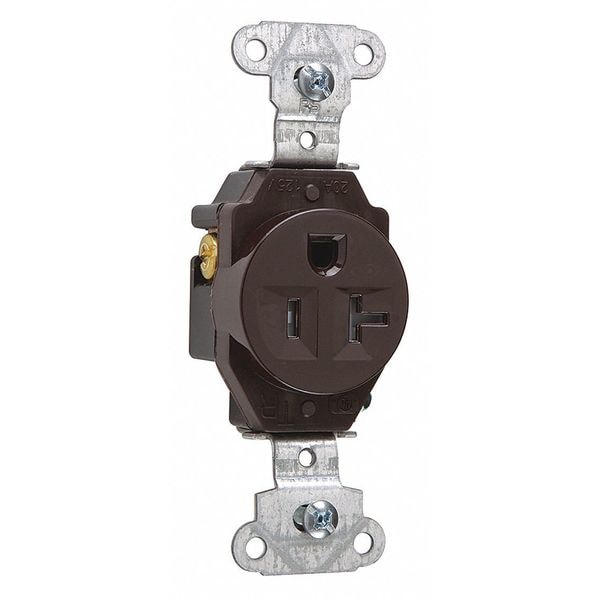

Receptáculo, 20 amperios, 125V CA, montaje empotrado, salida sencilla, 5-20R, color café.
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | Yes |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Brown |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Phase | Single |
| Amps - Plugs and Receptacles | 20 |
| Corrosion Resistant | Yes |
| HP | 1 hp |
| Sub-Category | Single Receptacles |
| Special Features | Corrosion resistant |
| Material | Nylon |
| Number of Gangs | 1 |
| Color | Brown |
| Standards | cULus Listed, UL 498 |
| Voltage | 125 V |
| Wiring Method | Back, Side |
| Receptacle Type | Single |
| Resistance Properties | Corrosion Resistant |
| Mount Type | Flush |
| Market | Commercial, Residential |
| Includes | Auto-Ground Clip, Mounting Hardware |
| Current Rating | 20 A |
| Grounding | Grounded |
| Face Diameter | 1.4 in |
| Includes Mounting Hardware | Yes |
| UL 94 Flammability Rating | V-2 |
| Surge Protection | No |
| Maximum Wire Size | 10 AWG |
| Face Plate Width | 1.3 in |
| Contact Material | Brass |
| Voltage Rating | 125V AC |
| Minimum Operating Temperature | -40 deg F |
| Mount Hole Center-to-Center Height | 3.7 in |
| Housing Material | Nylon, PVC |
| Wire Connection Type | Screw Terminals |
| Maximum Operating Temperature | 140 deg F |
| Horsepower Rating | 1 HP |
| Housing Color | Brown |
| Grade | Federal Specification |
| Minimum Wire Size | 14 AWG |
| NEMA Receptacle Configuration | 5-20R |
| Face Plate Height | 2 in |
| Connection Orientation | Straight |
| Dielectric Strength | Withstands 2000V minimum |
| Temperature Rating | Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact |
| Environmental Conditions | Flammability: UL94 V2 |
| Wire Size | #14 - #10 |
| Amperage | 20 A |
| Connection | Back and Side Wired |
| Is Tamper-Resistant | Yes |
| Nema Rating | 5-20R |
| Standard | UL498, CSA C22.2 No. 42 |
| Application Sector | Commercial |
| Package Quantity | 1 |
