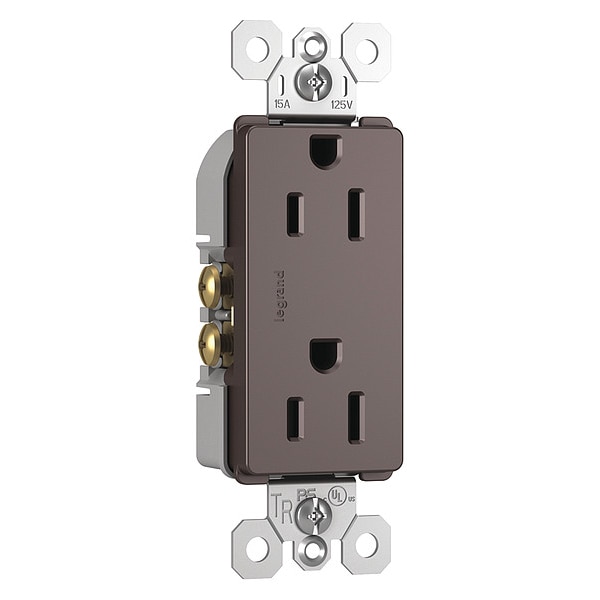

Receptáculo, hoja recta, 15A, NEMA 5-15R.
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | General Purpose |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | Yes |
| Number of Poles | 2 |
| Amps | 15 |
| Power Indicator | No |
| Color - Plugs and Receptacles | Brown |
| Wiring Method | Back, Side |
| Wiring Method - Plugs and Receptacles | Side, Push |
| Material | Thermoplastic |
| Number of Wires | 3 |
| Standards | cULus Listed |
| Type | Tamper Resistant |
| Color | Dark Bronze |
| Number of Gangs | 1 |
| Weather Resistant - Plugs and Receptacles | No |
| Includes | Grounding Clip, Mounting Hardware |
| Item | Receptacle |
| Contact Material | Brass |
| Maximum Wire Size | 12 AWG |
| Minimum Wire Size | 14 AWG |
| Includes Mounting Hardware | Yes |
| Face Plate Height | 2.6 in |
| AFCI | No |
| Grounding | Grounded |
| Current Rating | 15 A |
| Resistance Properties | Tamper Resistant |
| Overall Depth | 1 in |
| Wire Connection Type | Push In |
| Face Plate Width | 1.3 in |
| Surge Protection | No |
| Market | Residential |
| NEMA Receptacle Configuration | 5-15R |
| Housing Color | Brown |
| GFCI | No |
| Housing Material | Thermoplastic |
| Grade | General Use |
| Connection Orientation | Straight |
| Receptacle Type | Duplex |
| Voltage Rating | 125 V |
| Mount Hole Center-to-Center Height | 3.2 in |
| Height (U S) | 3.812 in |
| CSA Listing Info | C22.2 No.42 |
| CSA Standard | Yes |
| UL Standard | Yes |
| NEMA Configuration Number | 5-15R |
| Depth (U S) | 1 in |
| UL Listing No | UL498 |
| cULus | Yes |
| Volts A C | 125 |
| Width (U S) | 1.29 in |
| Package Quantity | 1 |
