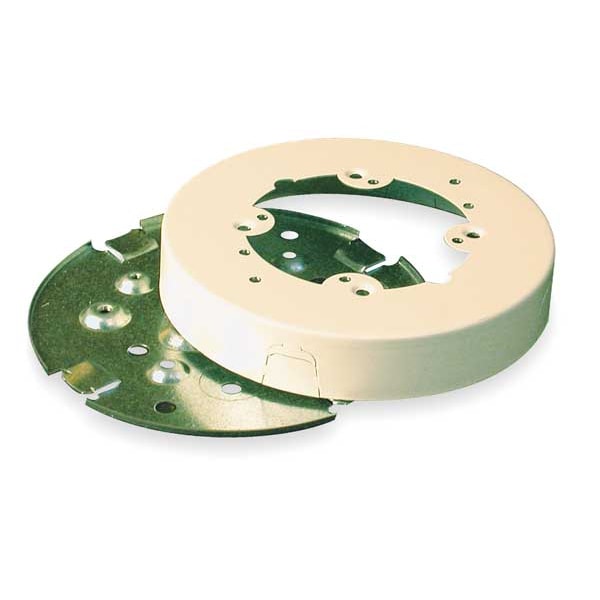

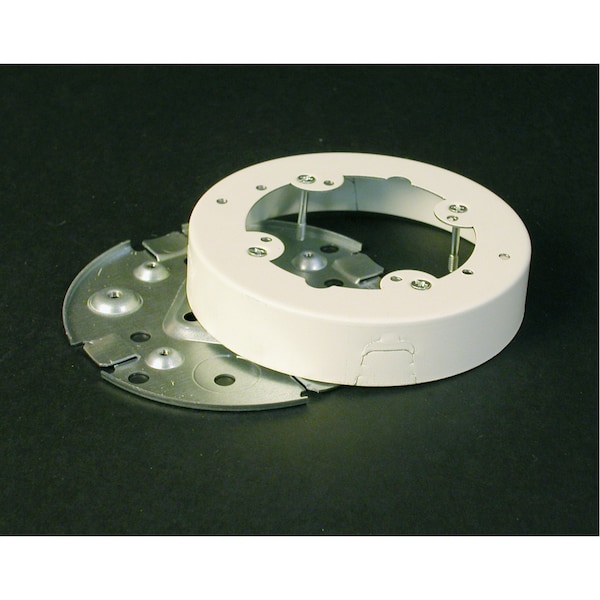

Round Fan Box, 500, 700 Series, 2 Channel, 5.5 in W, 1 in H, 5 1/2 in L, Ivory
| Item | Round Fan Box |
|---|---|
| Fittings Sub-Category | Boxes |
| Type | Raceway |
| Color | Ivory |
| For Use With | 700 Raceways, 500 Raceways |
| Material | Steel |
| Height | 1 in |
| Number of Channels | 2 |
| Series | 500, 700 |
| Width | 5-1/2 in |
| Mounting Style | Screw On |
| Length | 5-1/2 in |
| Standards | File E41751 Guide RJPR, Meets Article 386 of NEC and Meets Section 12-600 of CEC, RoHS, UL and cUL Listed File E4376 Guide RJBT |
| Features | Fan Rated, Fittings Have Removable Covers, Low Profile, Scuffcoat Finish |
| Overall Depth | 1-1/8 in |
| Length (In.) | 5-1/2 |
| Backing | Non-Adhesive |
| Number of Gangs | 1 |
| Mounting | Screw On |
| Material of Construction | Steel |
| Height (In.) | 5-1/2 |
| Knockouts | (4) 1/2 in Trade Size |
| Width (In.) | 5.5 Dia. |
| Function | Accepts Industry Standard and Proprietary Devices From a Wide Range of Manufacturers to Provide a Seamless and Aesthetically Pleasing Interface for Voice, Data, Audio, and Video Applications At the Point of Use |
| Box Type | Round |
| Cover Closure | Screw On |
| Basic Material | Steel |
| Voltage | 300 V |
| Application Sector | Commercial |
| Standard | cULus Listed Surface Metal Raceway: File E41751: Guide RJPR |
| Special Features | Low-profile, unobtrusive appearance., Surface mounting, UL5 and ADA compliant, UL and cUL Listed component raceways |
| Product Model | V5738AF |
| Product Name | Raceway V5738AF Mounting Box |
| Product Line | Raceway |
| Product Color | Ivory |
| Product Material | Steel |
| Product Height US | 5-1/2 in |
| Product Depth US | 1.13 in |
| Product Width US | 5-1/2 in |
| Product Environmental Profile | Yes |
| Product Volume US | 34.18 cu in |
| Package Quantity | 1 |
