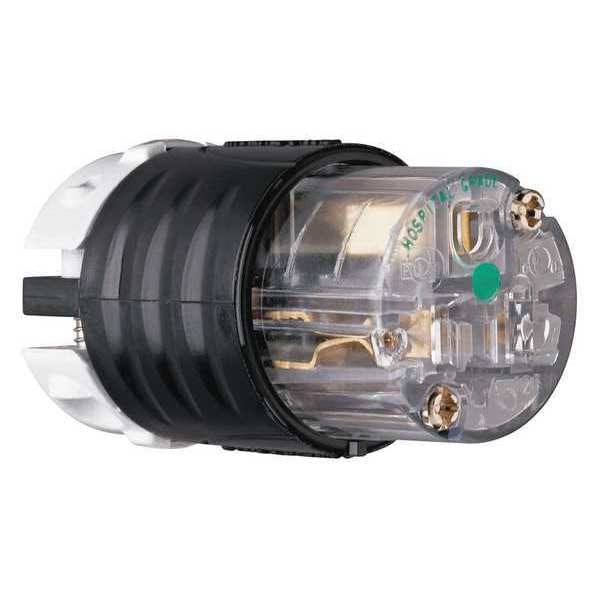

Conector de hoja recta, 15A, 125VAC.
| Item - Plugs and Receptacles | Straight Blade Connector |
|---|---|
| Amps - Plugs and Receptacles | 15 |
| Voltage | 125VAC |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration | 5-15R |
| NEMA Plug Configuration - Plugs and Receptacles | 5 to 15 R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Transparent |
| Grade - Plugs and Receptacles | Hospital |
| Antimicrobial | No |
| HP | 1/2 hp |
| Corrosion Resistant | Yes |
| Grade | Hospital Grade |
| Power Indicator | No |
| Phase | Single |
| IP Rating | Not Rated |
| Standards | cULus Listed, UL 498 |
| Cord Size | 0.23 to 0.72 in |
| Item | Straight Blade Connector |
| Special Features | Corrosion resistant |
| Material | Nylon |
| Color | Transparent |
| Amps | 15 |
| Wire Connection Type | Screw Terminals |
| Minimum Wire Size | 14 AWG |
| For Minimum Cable Diameter | 0.23 in |
| Contact Material | Brass |
| For Maximum Cable Diameter | 0.72 in |
| Power Indicating Light | No |
| Market | Industrial |
| Housing Color | Black, Clear |
| Horsepower Rating | 0.5 HP |
| Current Rating | 15 A |
| Connection Orientation | Straight |
| Voltage Rating | 125 V AC |
| Maximum Wire Size | 1/0 AWG |
| Housing Material | Nylon |
| Resistance Properties | Chemical Resistant |
| Package Quantity | 1 |
