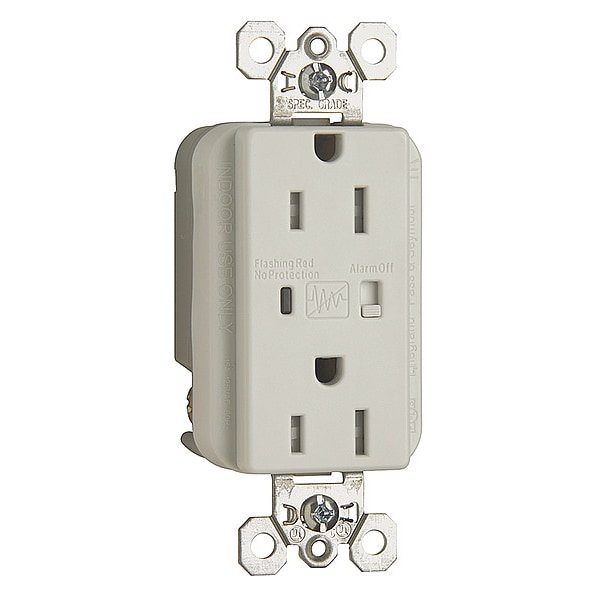

Tamper Resistant Extra Heavy Duty Surge Protective Duplex Receptacle, Number of Gangs: 1 Nylon
| Number of Gangs | 1 |
|---|---|
| Item | Tamper Resistant Extra Heavy Duty Surge Protective Duplex Receptacle |
| Color | White |
| Material | Nylon |
| Size | 3.82"H x 1-3/4"Wx 1.225"D |
| Weather Resistant | No |
| Tamper Resistant | Yes |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Number of Wires | 3 |
| Item - Plugs and Receptacles | Receptacle |
| Application Environment | General Purpose |
| Color - Plugs and Receptacles | White |
| Mounting Type | Surface |
| Corrosion Resistant | No |
| Power Indicator | Yes |
| Mounting Type - Plugs and Receptacles | Surface |
| Wiring Method - Plugs and Receptacles | Back |
| Voltage - Plugs and Receptacles | 125V AC |
| Outlet Type | Decorator |
| Amps | 15 |
| Number of Poles | 2 |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Standards | cULus Listed |
| Wiring Method | Back, Side |
| Special Features | Audible Alarm with LED Indicator |
| Amps - Plugs and Receptacles | 15 A |
| Surge Suppression | Yes |
| Voltage | 125VAC |
| Weather Resistant - Plugs and Receptacles | No |
| Includes Mounting Hardware | Yes |
| Face Plate Height | 2.8 in |
| Face Plate Width | 1.7 in |
| Mount Type | Surface |
| NEMA Receptacle Configuration | 5-15R |
| Resistance Properties | Corrosion Resistant, Tamper Resistant |
| Minimum Operating Temperature | -4 Degrees F |
| Receptacle Type | Duplex |
| Housing Material | Nylon |
| Grade | General Use |
| Surge Protection | Yes |
| Current Rating | 15 A |
| Maximum Surge Current | 24 kA |
| Housing Color | White |
| UL 94 Flammability Rating | V-2 |
| Voltage Rating | 125 V AC |
| Connection Orientation | Straight |
| Includes | Auto-Ground Clip, Mounting Hardware |
| Contact Material | Brass |
| For Location | Indoor |
| Visual Indicator Lights | Power Connected, No Longer Protected/No Reset |
| Phase | Single |
| Market | Commercial, Residential |
| Maximum Wire Size | 10 AWG |
| Grounding | Grounded |
| Minimum Wire Size | 14 AWG |
| Maximum Operating Temperature | 131 Degrees F |
| Wire Connection Type | Screw Terminals |
| Connection | Side & Back Wire |
| Environmental Conditions | UL94 V2 |
| Type of Indicators | LED, Audible Alarm |
| Amperage | 15 A |
| Frequency Rating | 60 Hz |
| Application Sector | Commercial, Residential |
| Package Quantity | 1 |
