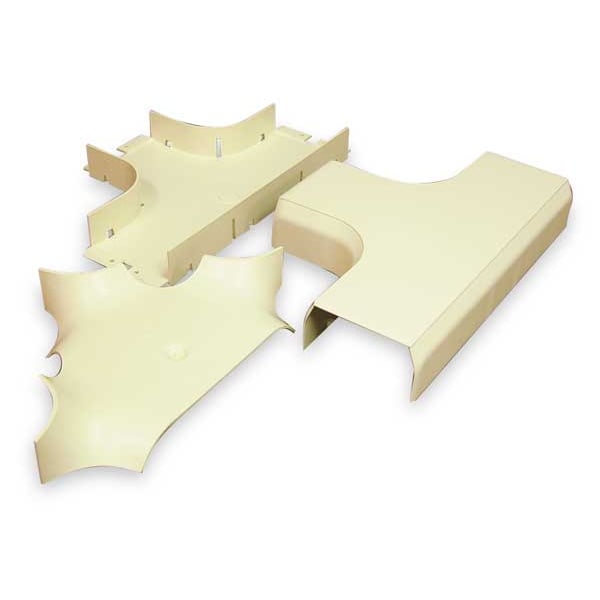

Tee, CableSmart 40N2 Series, 8.56 in W, 2 in H, 12.937 in L, Ivory
| Item | Tee |
|---|---|
| Fittings Sub-Category | Tees |
| Type | Raceway |
| Color | Ivory |
| For Use With | 40N2 Raceway |
| Material | Non-Metallic |
| Width | 8.56 in |
| Height | 2 in |
| Length | 12.937 in |
| Series | CableSmart 40N2 |
| Standards | cUL Listed, UL Listed |
| Length (Straight Wireway) | 12.937 in |
| Length (In.) | 12.937 |
| Compatible with Product Type | 40N2 Raceways |
| Height (In.) | 2 |
| Overall Length | 13 in |
| Raceway Material | Plastic |
| Overall Height | 2 in |
| For Raceway Width | 4 in |
| Features | For Branches at Right Angles, Full Capacity Tee Fitting that Provides Separation of Services and 2 in (51mm) Cable Bend Radius for UTP and Fiber Optic Installations |
| For Raceway Height | 2 in |
| Width (In.) | 8.56 |
| Overall Width | 8 1/2 in |
| For Raceway Width x Height | 4 in x 2 in |
| Bend Radius | 2 in |
| Special Features | Extremely tamper-resistant. FiberReady® 2" [51mm] fittings. Available prewired. New transition fitting options. High capacity device box options. Corner drop feed. |
| Application Sector | Commercial, Residential |
| Standard | cULus Listed Raceway: File E90378 Guide RJTX. Complies with Flammability requirements of UL-5A. Fittings: File E90377 Guide RJYT. Meets Article 388 of NEC. UL Listed for up to 600V. Meets Section 12-1600 of CEC. |
| Voltage | 600 V |
| Product Line | Wiremold |
| cULus Listed | Yes |
| Product Environmental Profile | Yes |
| Package Quantity | 1 |
