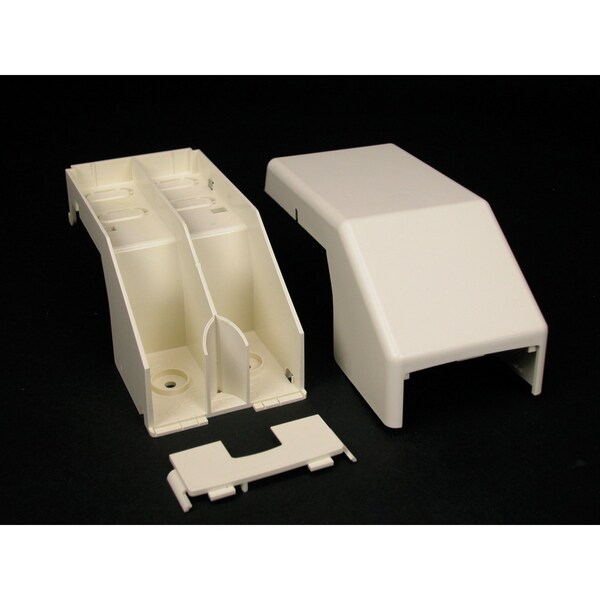

Transition, CableSmart 40N2 Series, 1 Channel, 2.718 in W, 2.312 in H, 6.125 in L, Ivory
| Item | Transition |
|---|---|
| Fittings Sub-Category | Transitions |
| Type | Raceway |
| Color | Ivory |
| For Use With | PN03, PN05, PN10 and PN20 Raceways |
| Material | Non-Metallic |
| Width | 2.718 in |
| Length | 6-1/8 in |
| Includes | (1) Divided Transition Fitting |
| Height | 2.312 in |
| Standards | UL Listed |
| Number of Channels | 1 |
| Series | CableSmart 40N2 |
| Mounting Style | Snap On |
| Length (Straight Wireway) | 6-1/8 in |
| Overall Length | 6-1/4 in |
| For Raceway Width x Height | 4 in x 2 in |
| Bend Radius | 2 in |
| For Raceway Height | 2 in |
| Height (In.) | 2.312 |
| Width (In.) | 2.718 |
| Length (In.) | 6-1/8 |
| Overall Width | 3 in |
| Material of Construction | PVC |
| Compatible with Product Type | 40N2 Raceways |
| Overall Height | 2 1/4 in |
| For Raceway Width | 4 in |
| Basic Material | PVC |
| Voltage | 600 V |
| Features | Makes transition from 40N2 Series Raceway to PN03, PN05 and PN10 Series Raceways. |
| Special Features | Extremely tamper-resistant. FiberReady® 2" [51mm] fittings. Available prewired. New transition fitting options. High capacity device box options. Corner drop feed. |
| Standard | cULus Listed Raceway: File E90378 Guide RJTX. Complies with Flammability requirements of UL-5A. Fittings: File E90377 Guide RJYT. Meets Article 388 of NEC. UL Listed for up to 600V. Meets Section 12-1600 of CEC. |
| Application Sector | Commercial, Residential |
| Product Name | Cablesmart 40N2 Divided Transition Fitting |
| Product Color | Ivory |
| Compatibility | CableSmart 40N2 Large Capacity Raceway |
| Cable Manager Type | Fitting |
| Product Type | Cable Routing |
| cULus Listed | Yes |
| Product Line | Wiremold |
| Product Environmental Profile | Yes |
| Package Quantity | 1 |
