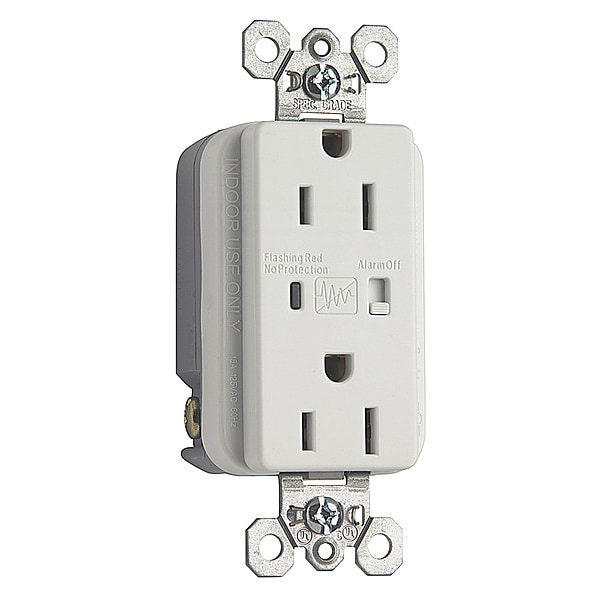

Urge Protective Duplex Receptacle, Number of Gangs: 1 Nylon, Matte Finish, White
| Number of Gangs | 1 |
|---|---|
| Item | Urge Protective Duplex Receptacle |
| Color | White |
| Material | Nylon |
| Size | 3.82"H x 1-3/4"Wx 1.225"D |
| Finish | Matte |
| Tamper Resistant | No |
| Number of Wires | 3 |
| Number of Poles | 2 |
| Amps - Plugs and Receptacles | 15 A |
| Power Indicator | No |
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Color - Plugs and Receptacles | White |
| Mounting Type - Plugs and Receptacles | Surface |
| Surge Suppression | Yes |
| Wiring Method - Plugs and Receptacles | Back, Side |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Corrosion Resistant | No |
| Amps - Plugs and Receptacles | 15 |
| Standards | ANSI/EEE C62.41 (Formerly IEEE 587) ANSI/IEEE C62.45, CSA Certified C22.2 No. 42, cUL, UL1449 UL 498 |
| Voltage - Plugs and Receptacles | 125V AC |
| Application Environment | Commercial |
| Weather Resistant - Plugs and Receptacles | No |
| Item - Plugs and Receptacles | Receptacle |
| Sub-Category | Duplex Receptacles |
| Amps | 15 |
| Wiring Method | Back, Side |
| Special Features | Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place. LED Indication: steady green = protected, flashing red = not protected, OFF = no power to unit. Audible alarm alert of MOV damage. Alarm able to be turned On/Off. Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation. Impact-resistant nylon exterior resists impacts and scrapes. Triple-wipe, copper-alloy contacts for superior, more dependable connection. External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw. Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond. |
| Voltage | 125VAC |
| Housing Material | Thermoplastic |
| Housing Color | White |
| Minimum Operating Temperature | -4 Degrees F |
| Grounding | Isolated Ground |
| Maximum Operating Temperature | 131 Degrees F |
| Current Rating | 15 A |
| Overall Depth | 1.2 in |
| Mount Hole Center-to-Center Width | 0.9 in |
| Surge Protection | Yes |
| Face Plate Height | 2.8 in |
| Market | Commercial, Residential |
| Mount Hole Center-to-Center Height | 3.8 in |
| Resistance Properties | Impact Resistant |
| NEMA Receptacle Configuration | 5-15R |
| Grade | Federal Specification |
| Connection Orientation | Straight |
| Mount Type | Surface |
| Face Plate Width | 1.8 in |
| UL 94 Flammability Rating | V-2 |
| Contact Material | Copper Alloy |
| Receptacle Type | Duplex |
| Includes | Grounding Clip, Mounting Hardware |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 14 AWG |
| Voltage Rating | 125 V AC |
| Includes Mounting Hardware | Yes |
| Connection | Back and side wire |
| Environmental Conditions | Flammability: UL94 V2 |
| Application Sector | Commercial |
| Standard | cUL UL1449, UL498: CSA C22.2 No. 42: ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation Categories €œA€ (Ring Wave) €œB€ (Unidirectional Impulse). |
| Package Quantity | 1 |
