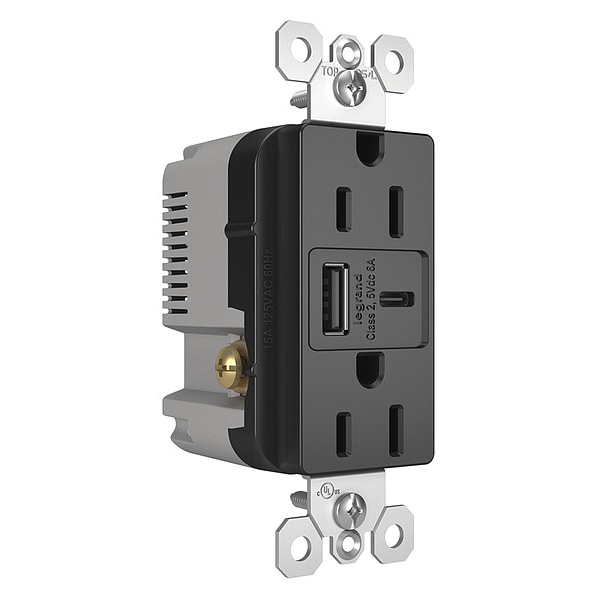

USB Charger Recept, 15 A, Black, Type A/C
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | General Purpose |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| USB Connector | Type A and C |
| Color - Plugs and Receptacles | Black |
| Wiring Method | Back, Side |
| Color | Black |
| Mounting Type | Box |
| Number of Poles | 2 |
| Material of Construction | Nylon |
| Outlet Type | Tamper-Resistant, Charging |
| Number of Wires | 3 |
| Tamper Resistance | Yes |
| Number of USB Ports | 2 |
| Standards | cULus |
| Weather Resistant - Plugs and Receptacles | No |
| Wiring Method - Plugs and Receptacles | Side, Back |
| USB Charging Capacity | 3.1 A |
| Power Indicator | No |
| Voltage | 125 V |
| Item | USB Charger Receptacle |
| Wire Connection Type | Screw Terminals |
| Maximum Wire Size | 10 AWG |
| Voltage Rating | 125 V |
| Power Indicating Light | No |
| Receptacle Type | Duplex |
| Overall Depth | 1.4 in |
| Maximum Operating Temperature | 140 deg F |
| Current Rating | 15 A |
| Minimum Operating Temperature | -40 deg F |
| USB Connection Type | A, C |
| Resistance Properties | Tamper Resistant |
| Market | Residential |
| Mount Type | Flush |
| Grade | General Use |
| Minimum Wire Size | 14 AWG |
| NEMA Receptacle Configuration | 5-15R |
| Housing Material | Nylon |
| Housing Color | Black |
| Number of Receptacles | 2 |
| Features | USB-A Charging,USB-C Charging |
| Is Tamper-Resistant | Yes |
| Indoor/Outdoor | Indoor |
| Environmental Conditions | 95 |
| NEMA Configuration Code | 5-15R |
| Nema Rating | 15A |
| Number of USBs | 2 |
| Finish | Matte |
| Amperage | 15 A |
| Package Quantity | 1 |
