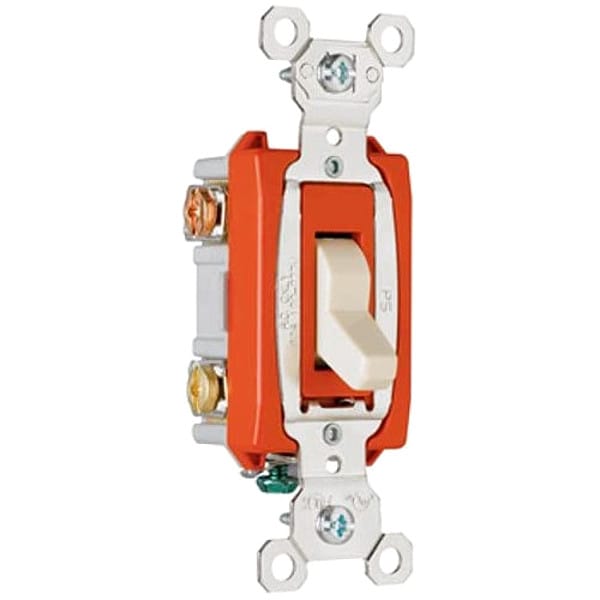

Wall Switch, 3-Way Switch Type, 20A
| Item | Wall Switch |
|---|---|
| Switch Type | 3-Way |
| Switch Style | Toggle |
| Amps AC | 20 A |
| Color | Ivory |
| Voltage AC | 120 to 277 |
| Locking | No |
| Switch Function | Maintained |
| Wiring Method | Back, Side |
| Application Environment | Industrial |
| Antimicrobial | No |
| Description/Special Features | Nylon Toggle |
| Voltage | 120.0 V |
| Standards | cULus Listed, UL 498/20, WD-1, WD-6 |
| Horsepower Rating | 1 HP |
| Housing Material | Thermoplastic |
| Current Rating | 20 A |
| Switch Material | Thermoplastic |
| Voltage Rating | 120V AC |
| Contact Material | Silver Alloy |
| Switch Height | 2.2 in |
| Mount Hole Center-to-Center Height | 3.3 in |
| Maximum Operating Temperature | 115 deg C |
| Grounding | Grounded |
| Strap Material | Nickel-Plated Brass |
| Overall Width | 1.3 in |
| Minimum Wire Size | 14 AWG |
| Minimum Operating Temperature | -40 deg F |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Heat Resistant, Impact Resistant |
| Maximum Wire Size | 10 AWG |
| Market | Industrial |
| Wire Connection Type | Screw Terminals |
| Switch Depth | 1.1 in |
| Features | Auto-Ground Clip Assures Positive Ground, Grounding Terminal is Standard with Screw-Pressure Plate Back Wire, Heavy-Duty Bumpers, Heavy-Duty, Brass Alloy, One-Piece Contact Arm, Locking Support Provides Resistance to Face and Back Body Separation |
| Number Of Poles | 3-Way |
| Special Features | Back & side wire, locking support, heavy duty toggle |
| Amperage | 20 A |
| Application Sector | Industrial |
| Actuator | Toggle |
| Standard | UL 498/20 |
| Contact Rating | 20Amp, 120/277Vac |
| Action | Three pole |
| Package Quantity | 1 |
