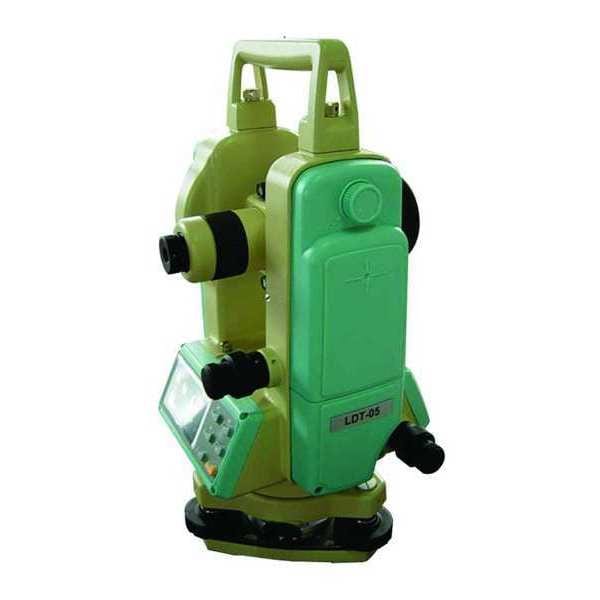

Digital Theodolite, Magnification 20X
| Optical Level Product Grouping | Theodolites |
|---|---|
| Item | Digital Theodolite |
| Working Range | 3,000 ft |
| Magnification | 20 x |
| Accuracy | +/-1/16 in @ 4 63/64 ft |
| Horizontal Range | 360 Degrees |
| Number of Lenses | 2 |
| Vertical Graduations | 1 Degrees |
| Vertical Range | 45 Degrees |
| Features | Glass Reticle, Reticle Cross Lines |
| Minimum Focus | 4.4 ft |
| Includes | Battery Charger, Case, Plumb Bob, Tool Kit |
| Horizontal Graduations | 1 Degrees |
| Field of View | 1 Degrees @ 30 ft |
| Leveling Type | Leveling Screws, Top Mounted Vial |
| Mounting Thread | 5/8-11 |
| Characteristics | Glass Reticle, Reticle Cross Lines |
| Type | Manual Leveling |
| IP Rating | 54 |
| Aperture | 1-13/16 in |
| Green Environmental Attribute | Product is Rechargeable |
| Self-Leveling Range | +/-3 Degrees |
| Operating Temperature - Minimum | 14 deg F |
| Stadia Constant | 100 |
| Level Indicators | Visual |
| Laser Beam Color | Red |
| Operating Temperature - Maximum | 122 deg F |
| Material | Aluminum |
| Field of View - Optical Plummet | 1 Degrees @ 30 ft |
| Tripod Thread Size | 5/8"-11 |
| Weight | 18.26 lb |
| Field of View - Telescope | 1 Degrees @ 30 ft |
| Use Location | Outdoor, Indoor |
| Laser Output | 1mW |
| Operating Life - Time | 36 hr |
| Laser Beam Diameter | 3 mm |
| Total Number of Vials | 1 |
| Magnification - Optical Plummet | 20X |
| Display Type | LCD |
| Magnification - Telescope | 20X |
| Overall Height | 32 cm |
| Working Range - Maximum | 3,000 ft |
| Includes Batteries | Batteries Included |
| Standards | ISO 9001 |
| Overall Length | 50 cm |
| Voltage | 4.8 V |
| Overall Width | 33 cm |
| Focus Diameter - Minimum | 4 ft 4-1/2 in |
| Package Quantity | 1 |
