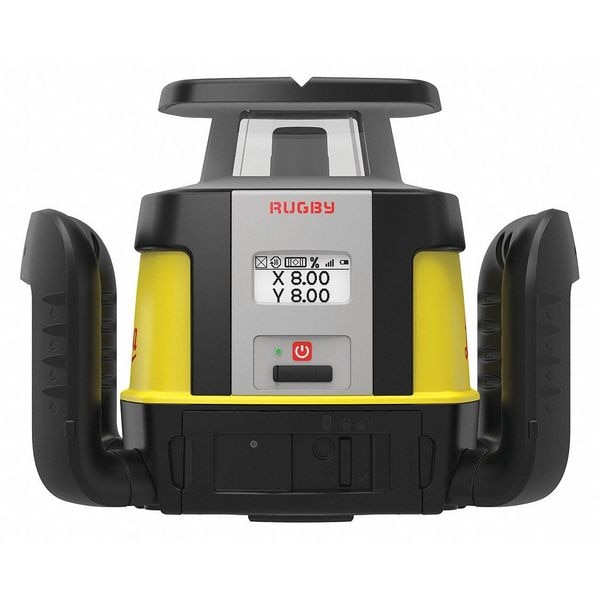

Rotary Laser, Exterior, Horizontal
| Item | Rotary Laser |
|---|---|
| Laser Usage Environment | Exterior |
| Laser Projection | Horizontal |
| Leveling Type | Electronic Self-Leveling |
| Number of Beams | 1 |
| Number of Dots | 0 |
| Number of Lines | 0 |
| Laser Color | Red |
| Range w/o Detector | 100 ft |
| Laser Class | Class 1 |
| Thread Size | 5/8"-11 |
| Number of Level Vials | 0 |
| Range w/Detector | 4,430 ft |
| Grade Capability | Dual |
| Total Number of Vials | 0 |
| Power Source | Li-Ion Rechargeable Battery Pack |
| Plumb Down | No |
| IP Rating | IP68 |
| Width | 11-45/64 in |
| Plumb Up | No |
| Number of Scanning Modes | 2 |
| Number of 45 Degree Vials | 0 |
| Height | 9-7/64 in |
| Preset Angle | None |
| Auto Leveling Range | +/-6 deg |
| Visual/Audible Indicators | Yes |
| Auto Shutoff | Yes |
| Length | 8-5/16 in |
| Number of Plumb Vials | 0 |
| Accuracy | +/-1/16 in @ 100 ft |
| Includes | Case, Cable |
| Slope | +/- 8 deg |
| Rotating Speed | 20 RPM |
| Features | Concrete and Formwork Levelling, Height Checking, Land Levelling |
| Battery Type | Li-Ion |
| Material | Plastic |
| Working Range without Detector - Maximum | 100 ft |
| Working Range with Detector - Maximum | 4,430 ft |
| Plumb Direction | Plumb Up |
| Preset Angles | 180 deg |
| Operating Temperature - Maximum | 122 deg F |
| Bluetooth | Not Bluetooth Compatible |
| Number of 45 Vials | 0 |
| Laser Beam Color | Red |
| Standards | ISO 9001 |
| Mount Type | Thumb Screw |
| Includes Batteries | Batteries Included |
| Outdoor Range - Maximum | 4,429 ft |
| Automatic Shutoff | Yes |
| Weight | 8.3 lb |
| Overall Height | 9-1/8 in |
| Tripod Thread Size | 5/8"-11 |
| Indoor Range - Maximum | 4,429 ft |
| Overall Depth | 8-5/16 in |
| Overall Width | 11-11/16 in |
| Self-Leveling Range | +/-6 deg |
| Operating Temperature - Minimum | -4 deg F |
| Level Indicators | Visual, Audible |
| Number of Planes | 0 |
| Laser Output | 0.6 mW / 3.5 mW Pulse duration (effective) 500 ms / 1.4 ms, 1 |
| Use Location | Outdoor |
| Package Quantity | 1 |
