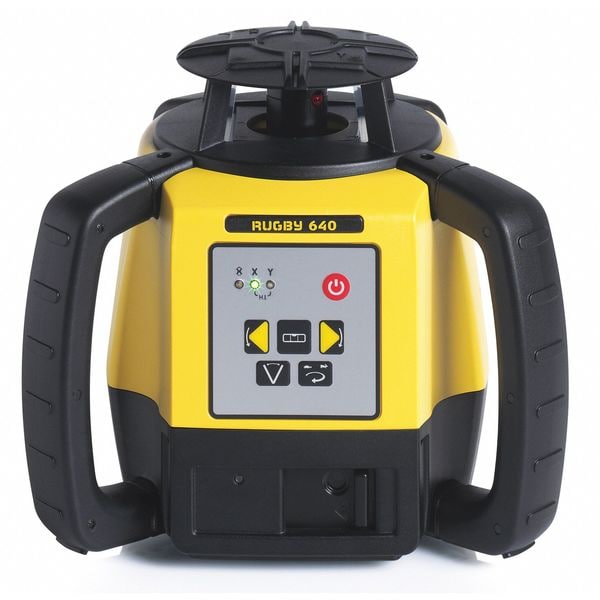

Rotary Laser Kit, Interior/Exterior Usage
| Item | Rotary Laser Kit |
|---|---|
| Laser Usage Environment | Interior, Exterior |
| Laser Projection | Horizontal, Vertical |
| Leveling Type | Electronic Self-Leveling |
| Number of Beams | 1 |
| Number of Dots | 0 |
| Number of Lines | 0 |
| Laser Color | Red |
| Range w/o Detector | 1,500 ft |
| Laser Class | Class 2 |
| Range w/Detector | 2,600 ft |
| Visual/Audible Indicators | Yes |
| Number of 45 Degree Vials | 0 |
| Length | 8 in |
| Rotating Speed | 10 RPM |
| Height | 8 in |
| Number of Scanning Modes | 2 |
| Number of Plumb Vials | 0 |
| Number of Level Vials | 0 |
| Slope | +/- 8 deg |
| Includes | Bracket, Case, Rod Eye 120 |
| Thread Size | 5/8 in |
| Power Source | (4) AA Batteries, (4) D Cell, Li-Ion Battery |
| Total Number of Vials | 0 |
| Plumb Down | No |
| Grade Capability | Dual |
| Width | 8 in |
| Auto Leveling Range | +/-5 deg |
| Auto Shutoff | Yes |
| Plumb Up | No |
| Accuracy | +/-3/32 in @ 100 ft |
| IP Rating | IP67 |
| Preset Angle | None |
| Features | Detect the Laser Beam in any Conditions and at any Distances with the Leica Rod Eye Receiver Range - from a Convenient Offset Reading with Rod Eye 120G/120 to Working at Long Distances with Rod Eye 140/160, Rugby 640G Provides Outstanding Visibility for Indoor and Outdoor Applications with New Green Beam Laser Technology, Rugby 680 Provides a Semi Automatic Grade Capability in Both Axis upto 8%, Setting Foundations and Footings has Never Been More Efficient. the Rugby 600 Series is Fit for any Interior and Exterior Levelling, Aligning and Squaring Application - Concrete Forming, Pad Placement and Framework Levelling |
| Battery Type | Max, 20V, Alkaline |
| Material | Plastic |
| Bluetooth | Not Bluetooth Compatible |
| Outdoor Range - Maximum | 1,650 ft |
| Laser Output | 2.7 mW +/- 5% |
| Tripod Thread Size | 5/8"-11 |
| Laser Beam Color | Red |
| Self-Leveling Range | +/-5 deg |
| Plumb Direction | Plumb Up |
| Use Location | Indoor, Outdoor |
| Indoor Range - Maximum | 1,650 ft |
| Operating Temperature - Minimum | -4 deg F |
| Includes Batteries | Batteries Included |
| Number of 45 Vials | 0 |
| Level Indicators | Visual, Audible |
| Overall Depth | 8 in |
| Working Range with Detector - Maximum | 2,600 ft |
| Operating Temperature - Maximum | 122 deg F |
| Preset Angles | 180 deg |
| Overall Height | 8 in |
| Weight | 7.1 lb |
| Number of Planes | 0 |
| Automatic Shutoff | Yes |
| Working Range without Detector - Maximum | 1,500 ft |
| Overall Width | 8 in |
| Mount Type | Thumb Screw |
| Standards | ISO 9001 |
| Package Quantity | 1 |
